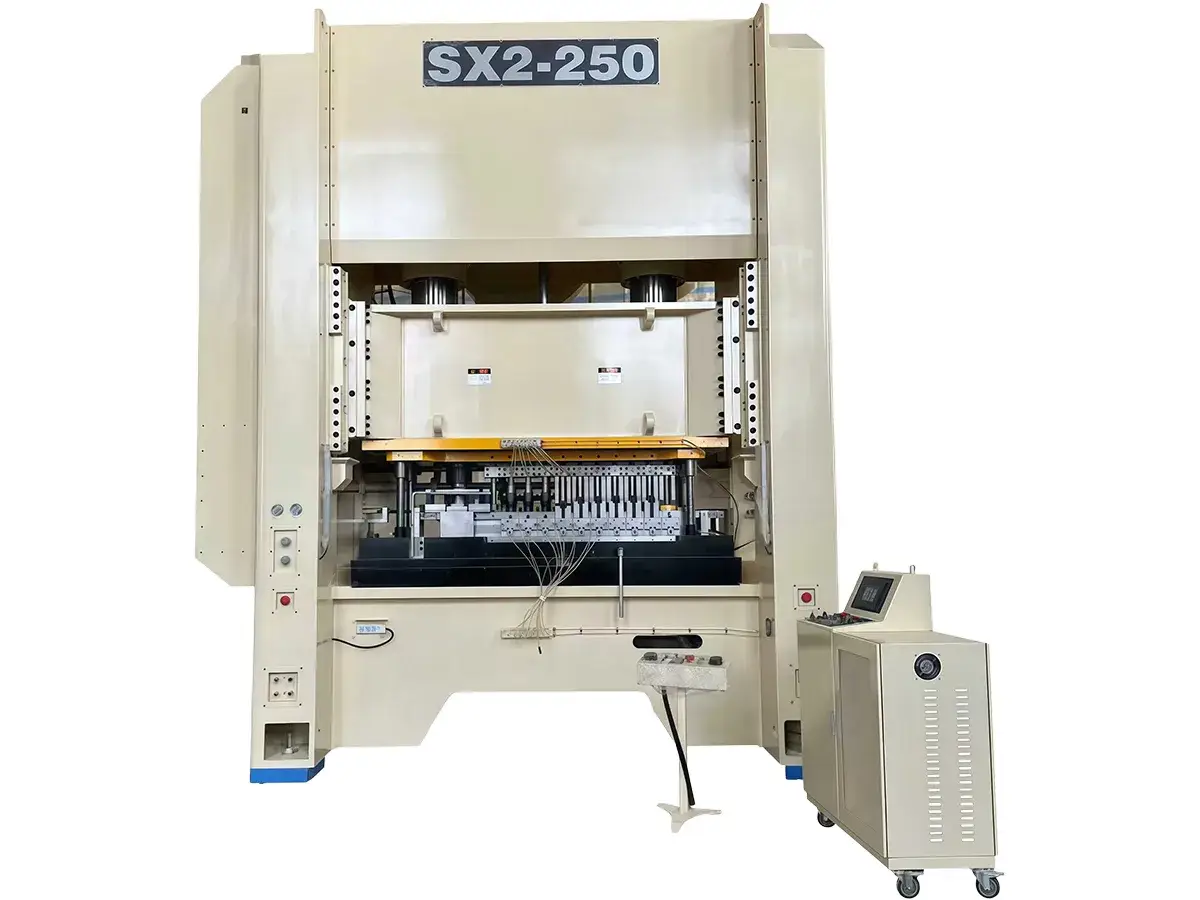

Straight Side Press for Battery Steel Shell, SX2-250 Series
A straight side press for battery steel shell production is designed to handle forming processes where stability and accuracy need to be maintained throughout each cycle. The SX2-250 Series uses a closed-frame structure to keep the ram movement steady, making it suitable for continuous production of battery shells with consistent forming results.
Technical Specifications
| Model | Unit | |
| Capacity | ton | 250 |
| Rated Tonnage Point | mm | 8.0 |
| Stroke Length | mm | 280 |
| Max. Die Height | mm | 460 |
| Strokes Per Minute | spm | 15-35 |
| Slide Area (L.R×F.B) | mm | 2600×800 |
| Bolster Area (L.R×F.B) | mm | 2700×1000 |
| Slide Opening (F.B×H) | kg | 300 |
| Main Motor Power | kW | 22×4 |
Features
-
Extended Four-Corner, Eight-Face Guiding System
The long guide structure improves resistance to off-center loads, helping maintain stable movement and consistent accuracy during forming. -
Circulating Oil Lubrication System
The lubrication system uses circulating oil to support smooth operation while keeping the equipment clean and well maintained. -
Integrated Safety Protection System
Designed with operator protection features that meet press safety standards, supporting safe and stable operation. -
Integrated Forming Support Components

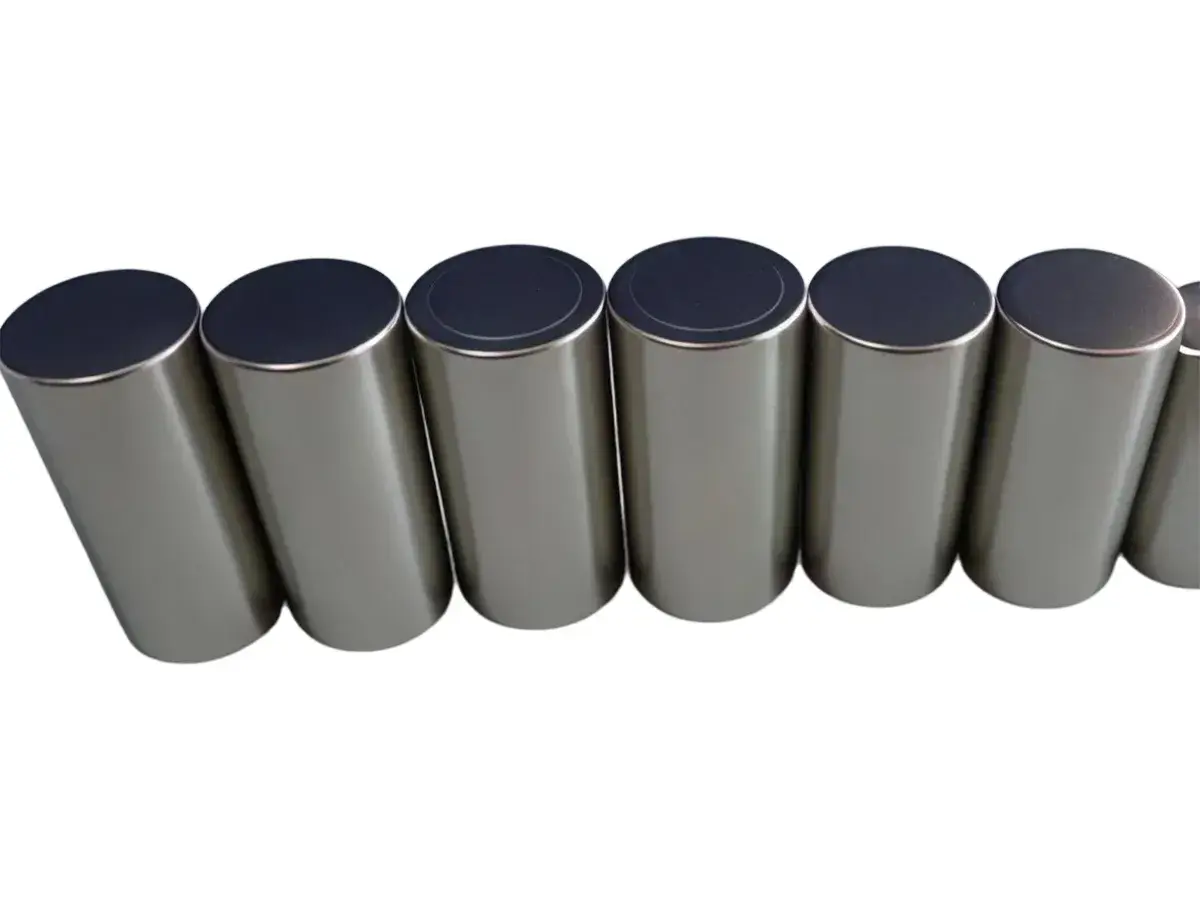

Equipped with guide columns, guide bushings, a lubrication pump, and a dedicated drawing oil pump to support stable forming in battery shell production.
