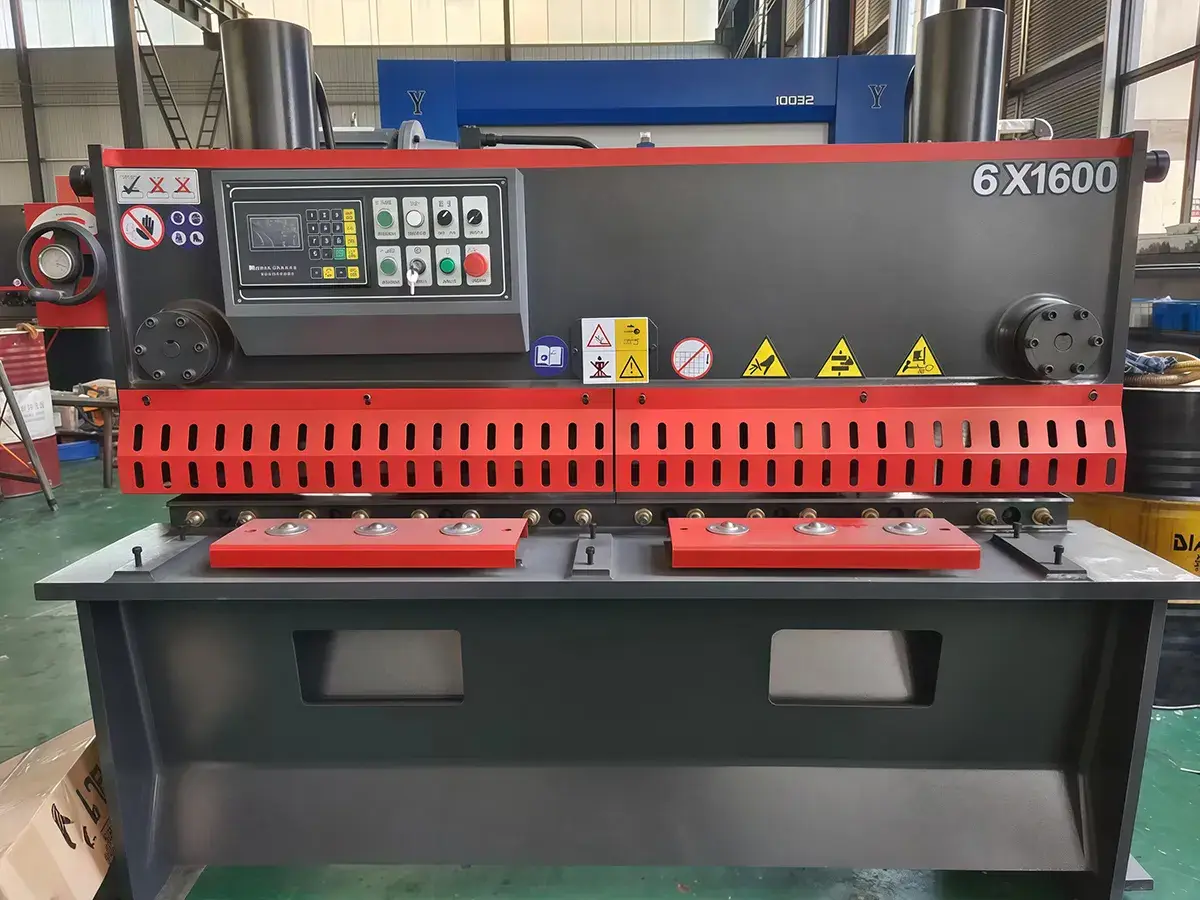

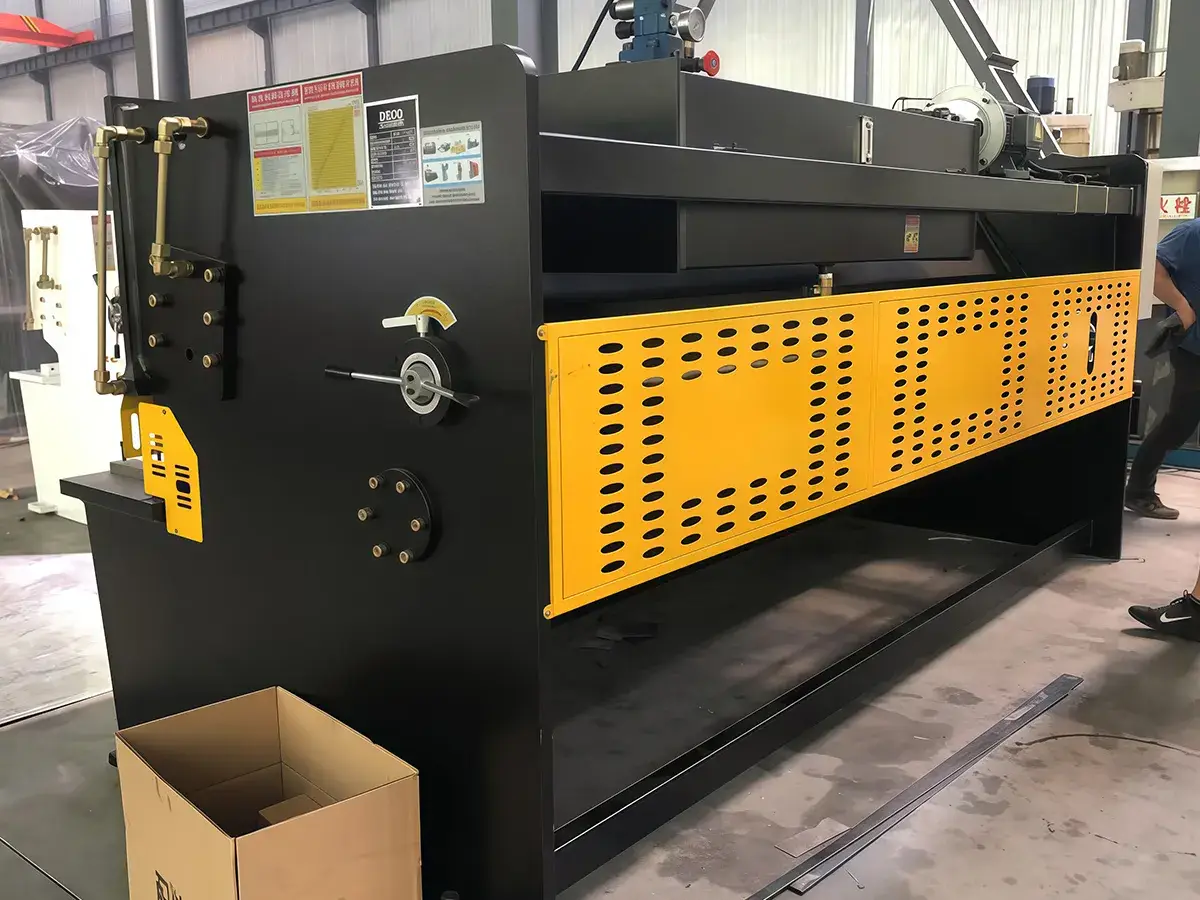

CNC Hydraulic Guillotine Shear

A CNC hydraulic guillotine shear is designed for high-precision sheet metal cutting, offering stable performance and consistent results across a wide range of materials and thicknesses. With a rigid frame and controlled cutting action, it ensures clean edges while maintaining efficiency in fabrication processes.

Request a Quote

Technical Specifications

Model	Max. Shearing Thickness (mm)	Max. Shearing Width (mm)	Material Tensile Strength (MPa)	Shearing Angle (°)	Backgauge Range (mm)	Stroke Rate	Throat Depth (mm)	Blade Length (mm)	Motor Power (kW)	Overall Dimensions (mm)
QC11Y-6×3200	6	3200	450	0.5-1.5	500	13-22	130	3300	7.5	3900×1520×2100
QC11Y-6×4000	6	4000	450	0.5-1.5	500	8-15	130	4100	7.5	4700×1770×2200
QC11Y-6×6000	6	6000	450	0.5-2	750	5-10	100	6100	11	6800×1900×2550
QC11Y-8×2500	8	2500	450	0.5-2	500	14-24	130	2600	7.5	3150×1580×2050
QC11Y-8×3200	8	3200	450	0.5-2	500	12-21	130	3300	7.5	3900×1700×2150
QC11Y-8×4000	8	4000	450	0.5-2	500	8-14	130	4100	11	4700×1840×2350
QC11Y-8×6000	8	6000	450	0.5-2	750	5-10	100	6100	11	6800×2100×2750
QC11Y-8×8000	8	8000	450	0.5-2	900	5-8	100	8080	18.5	8800×2400×3000
QC11Y-10×2500	10	2500	450	0.5-2	500	12-24	130	2600	11	3150×1670×2150
QC11Y-10×3200	10	3200	450	0.5-2	500	10-18	130	3300	11	3900×1730×2250
QC11Y-10×4000	10	4000	450	0.5-2	750	7-12	130	4100	18.5	4750×1900×2450
QC11Y-10×6000	10	6000	450	0.5-2	750	5-10	100	6100	18.5	6950×2200×2900
QC11Y-10×8000	10	8000	450	0.5-2	900	4-8	100	8080	30	8950×2500×3150
QC11Y-12×2500	12	2500	450	0.5-2.5	750	10-18	130	2600	18.5	3250×1800×2280
QC11Y-12×3200	12	3200	450	0.5-2.5	750	9-18	130	3300	18.5	3950×1870×2350
QC11Y-12×4000	12	4000	450	0.5-2.5	750	7-12	130	4100	18.5	4800×1970×2550
QC11Y-12×6000	12	6000	450	0.5-2.5	750	5-10	100	6100	30	7000×2250×3000
QC11Y-12×8000	12	8000	450	0.5-2.5	900	4-9	100	8080	37	9000×2500×3300
QC11Y-16×2500	16	2500	450	0.5-2.5	750	9-16	100	2600	18.5	3290×1890×2400
QC11Y-16×3200	16	3200	450	0.5-2.5	750	8-13	100	3300	18.5	3970×1920×2520
QC11Y-16×4000	16	4000	450	0.5-2.5	750	9-12	100	4100	30	4850×1890×2750
QC11Y-16×6000	16	6000	450	0.5-2.5	900	5-10	100	6100	37	7100×2460×2920
QC11Y-16×8000	16	8000	450	0.5-2.5	900	4-9	100	8080	37	9000×2650×3400
QC11Y-16×9000	16	9000	450	0.5-2.5	900	3-8	100	9100	45	10000×3260×3950
QC11Y-20×2500	20	2500	450	0.5-2.5	750	8-16	130	2600	30	3350×2050×2500
QC11Y-20×3200	20	3200	450	0.5-2.5	750	5-14	130	3300	30	4100×2080×2550
QC11Y-20×4000	20	4000	450	0.5-3	750	5-12	100	4100	30	4900×2200×2800
OC11Y-20×6000	20	6000	450	0.5-3	900	4-8	100	6100	37	7100×2600×3250
OC11Y-20×9000	20	9000	450	0.5-2.5	900	3-7	100	9100	55	10050×3350×4000
QC11Y-25×2500	25	2500	450	0.5-3	900	6-14	100	2600	37	3500×2150×2600
QC11Y-25×3200	25	3200	450	0.5-3	900	5-11	100	3300	37	4100×2150×2650
0C11Y-25×4000	25	4000	450	0.5-3	900	5-10	100	4100	37	4900×2280×2900
0C11Y-25×6000	25	6000	450	0.5-3	900	4-8	100	6100	45	7100×2680×3350
QC11Y-30×2500	30	2500	450	0.5-3.5	900	5-11	100	2600	45	3700×2570×3100
0C11Y-30×3200	30	3200	450	0.5-3.5	900	5-9	100	3300	45	4400×2800×3250
0C11Y-30×4000	30	4000	450	0.5-3.5	900	4-9	100	4100	55	5200×3000×3400
0C11Y-30×6000	30	6000	450	0.5-3.5	900	4-8	100	6100	55	7100×3000×3600
OC11Y-40×2500	40	2500	450	0.5-4	900	4-11	100	2600	55	3950×3020×3300

Main Components

Hydraulic System

Advanced Integrated Hydraulic System
The integrated hydraulic system reduces the complexity of piping installations, ensuring high reliability and safety during machine operation.
Material Pressing Mechanism
Equipped with an independent pressing oil cylinder, the pressing force automatically adjusts based on the thickness of the sheet metal. The pressing mechanism tightly holds the material before cutting and automatically resets after completion, ensuring precise cutting and preventing material displacement.

Electrical Control System

The system operates on a 380V/50Hz three-phase four-wire power supply and is equipped with a precise control transformer, ensuring stable operation of electromagnetic valves and core control components under consistent voltage.
All operational functions, aside from the foot pedal switch, are integrated into the front button panel. The panel uses intuitive international standard symbols, significantly reducing operational complexity and minimizing the risk of operator errors.
The independent electrical box is positioned on the side of the machine, with a compact design and high protection grade, making it easy for daily inspections and future maintenance.

Front & Rear Material Stops

The metal sheering machine features a high-precision positioning and stop system. The front stop includes a ruler and adjustable block, specifically designed for quick positioning during thin sheet cutting. The rear stop uses a motor-driven ball screw system, which supports automatic digital adjustment via control buttons. It also includes a manual rotary wheel for fine-tuning precision. When the cutting length exceeds the maximum range, the stop plate can be flipped upward, allowing for the uninterrupted passage and continuous processing of longer sheets, greatly enhancing production flexibility and efficiency.

Pneumatic Material Support System

Designed for high-precision cutting of thin sheets, this system utilizes pneumatic control to synchronize the support frame with the rear stop, maintaining precise horizontal alignment and effectively preventing positioning errors caused by the sheet’s own weight. The support frame operates automatically in sync with the cutting cycle: it provides stable support during pressing, drops automatically after cutting to unload, and quickly resets for the next operation. By providing stable support throughout the cutting cycle, this system ensures cutting accuracy on long thin sheets, so you achieve consistent precision and smoother, uninterrupted, efficient processing.
