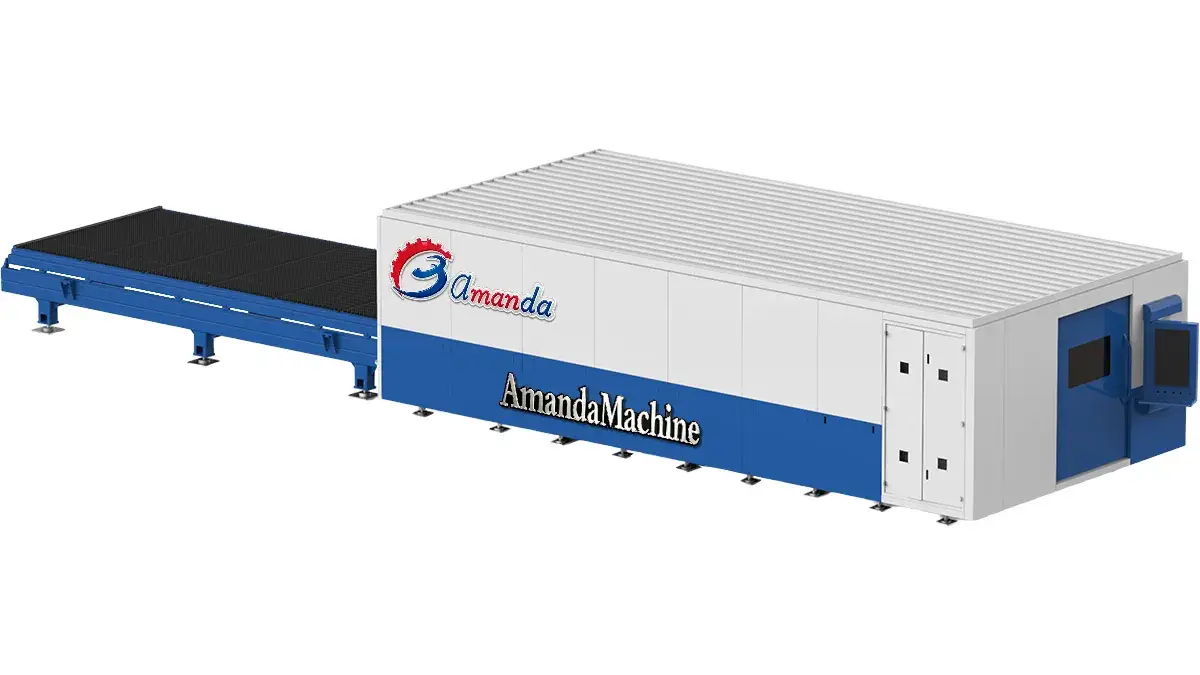

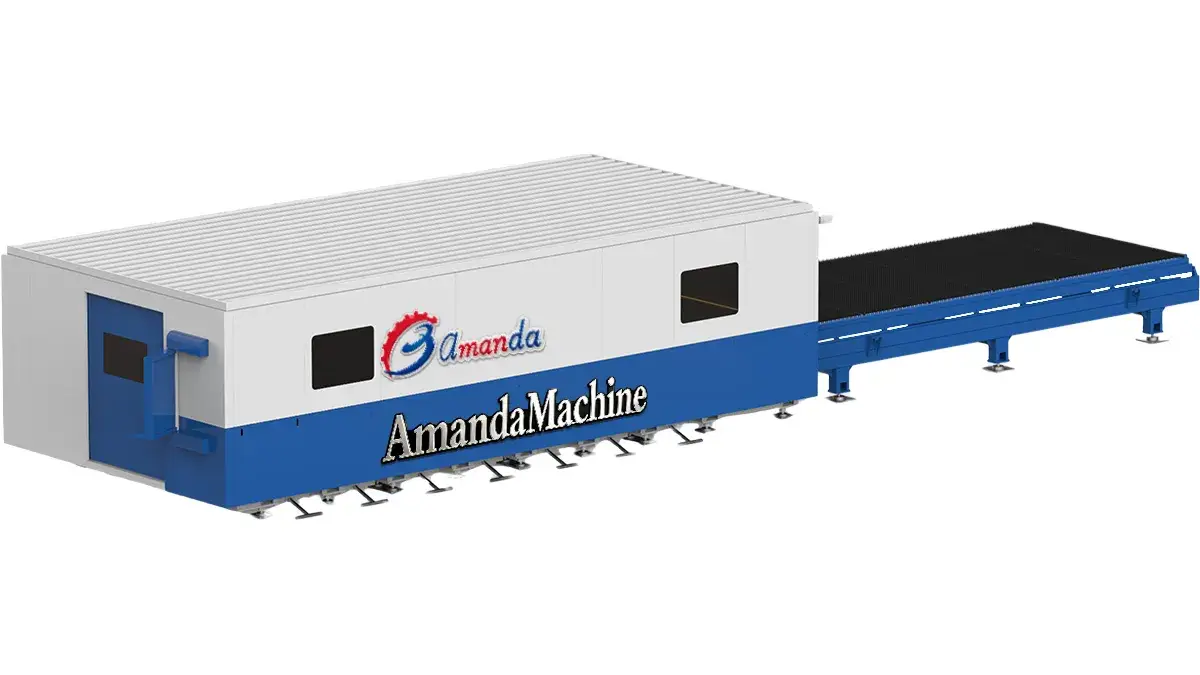

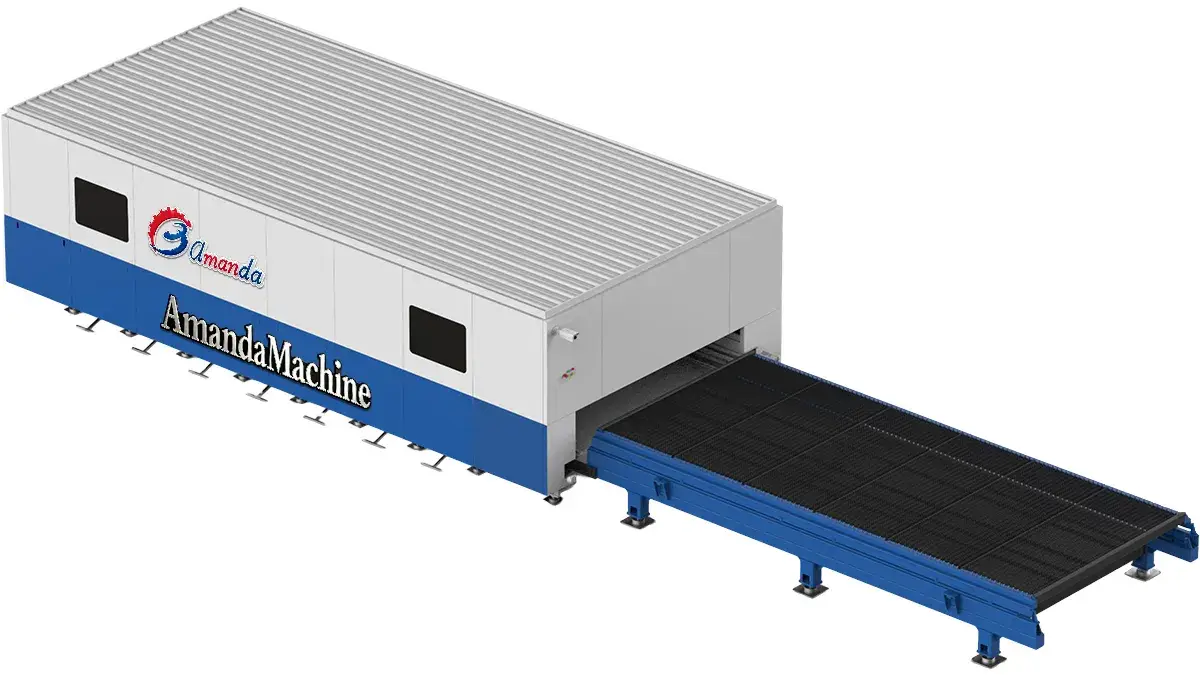

Enclosed Fiber Laser Cutting Machine

An enclosed fiber laser cutting machine is designed for efficient and precise sheet metal processing, combining high-speed cutting with improved safety and a clean working environment. Equipped with an exchange table, it allows loading and cutting to take place simultaneously, significantly reducing idle time and increasing overall productivity.

Built with a dual worktable system, the laser cutting machine enables fast and stable table exchange, enhancing rigidity and maintaining cutting accuracy. With an exchange cycle of around 7 seconds, it minimizes feeding delays and supports continuous operation, making it a practical solution for manufacturers looking to increase throughput and streamline production.

Request a Quote

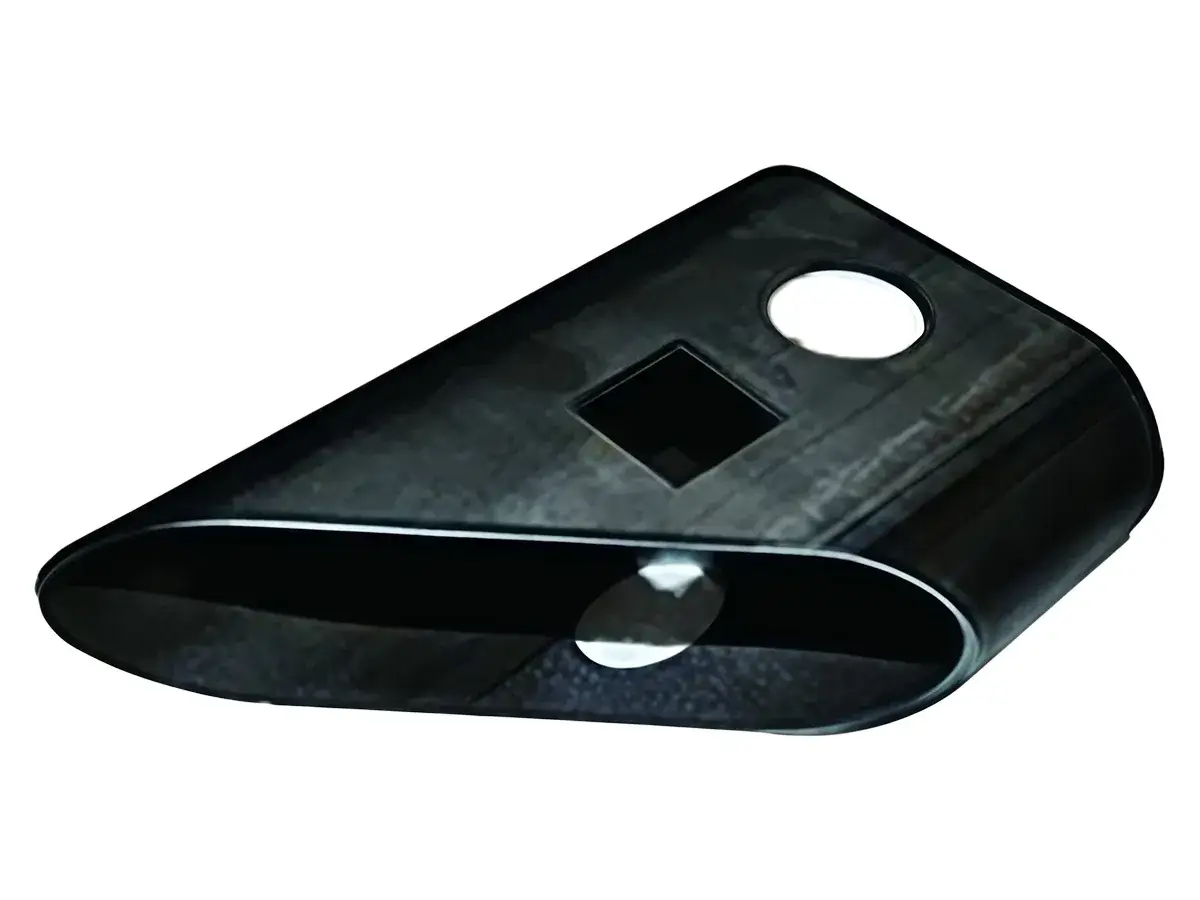

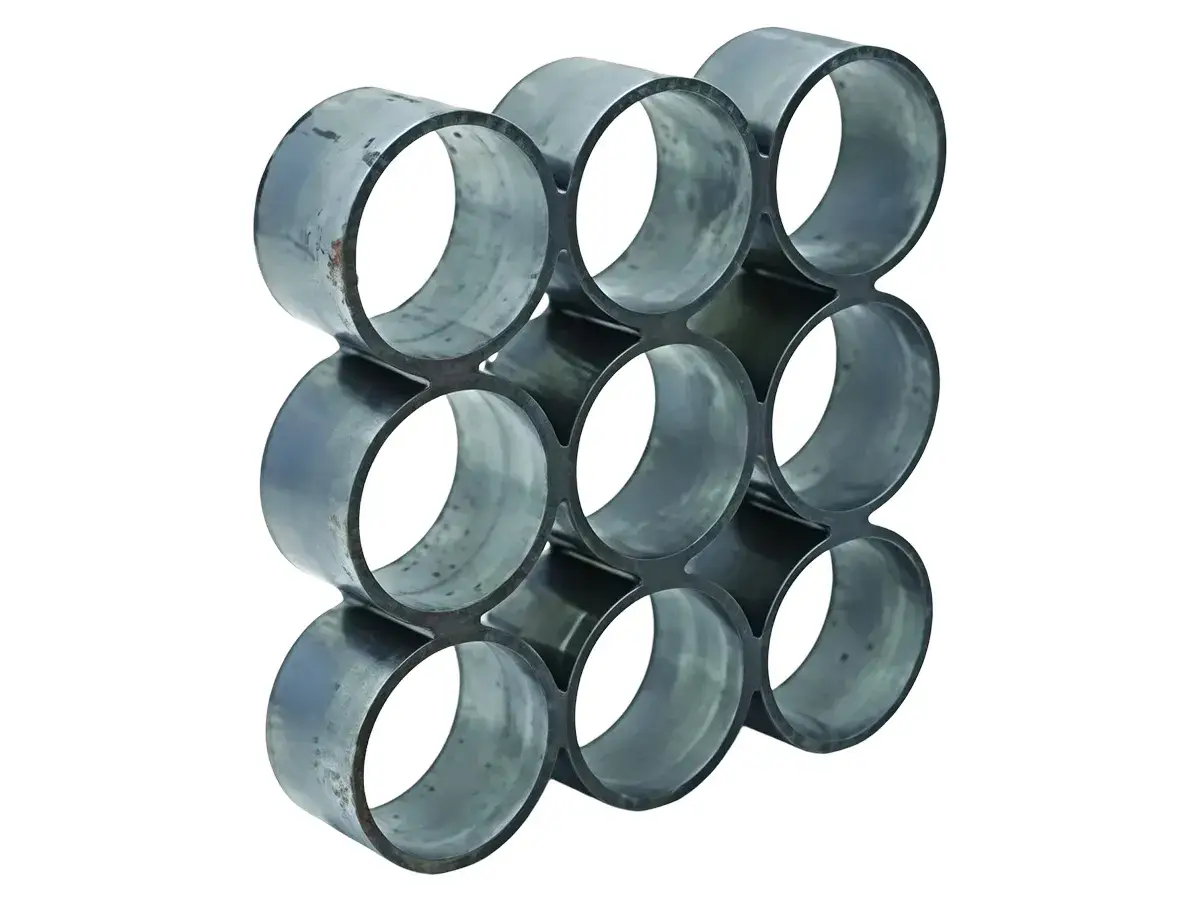

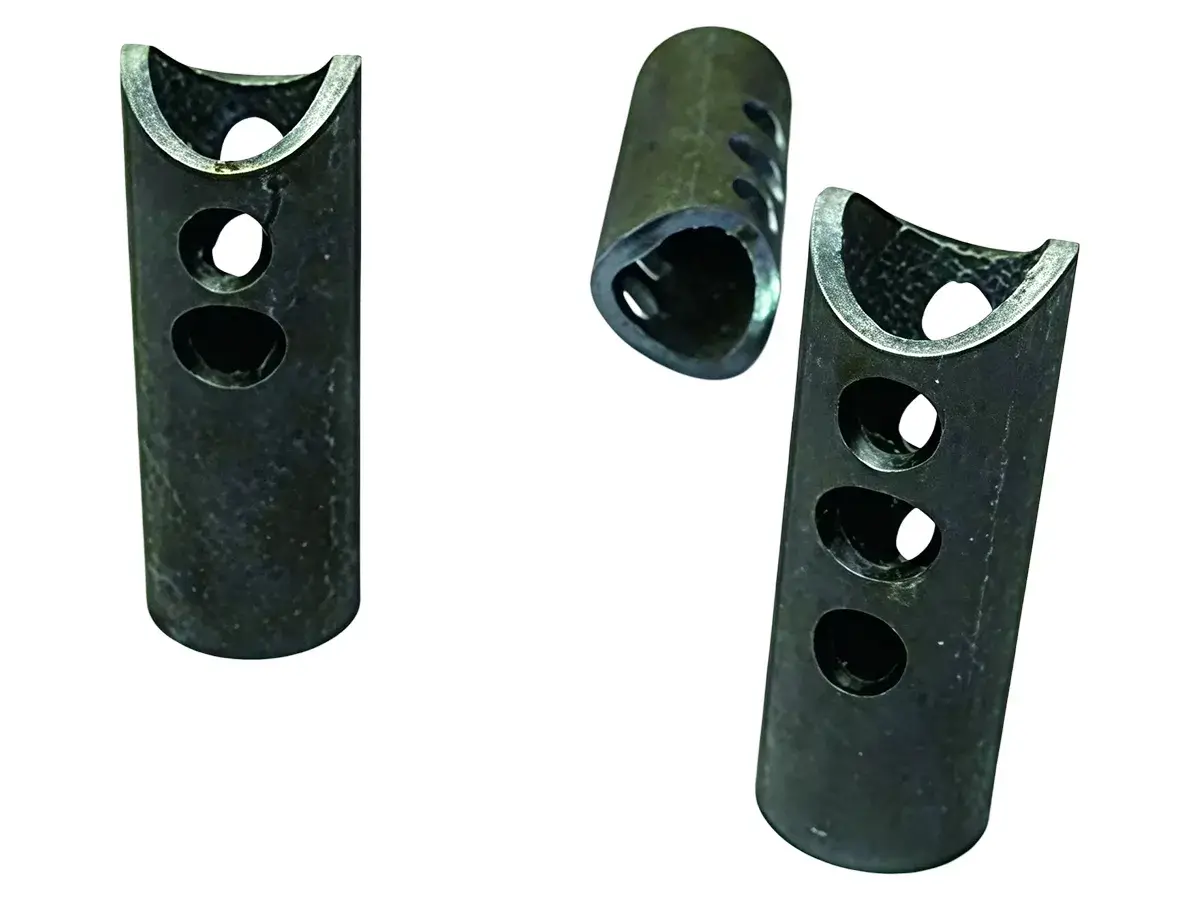

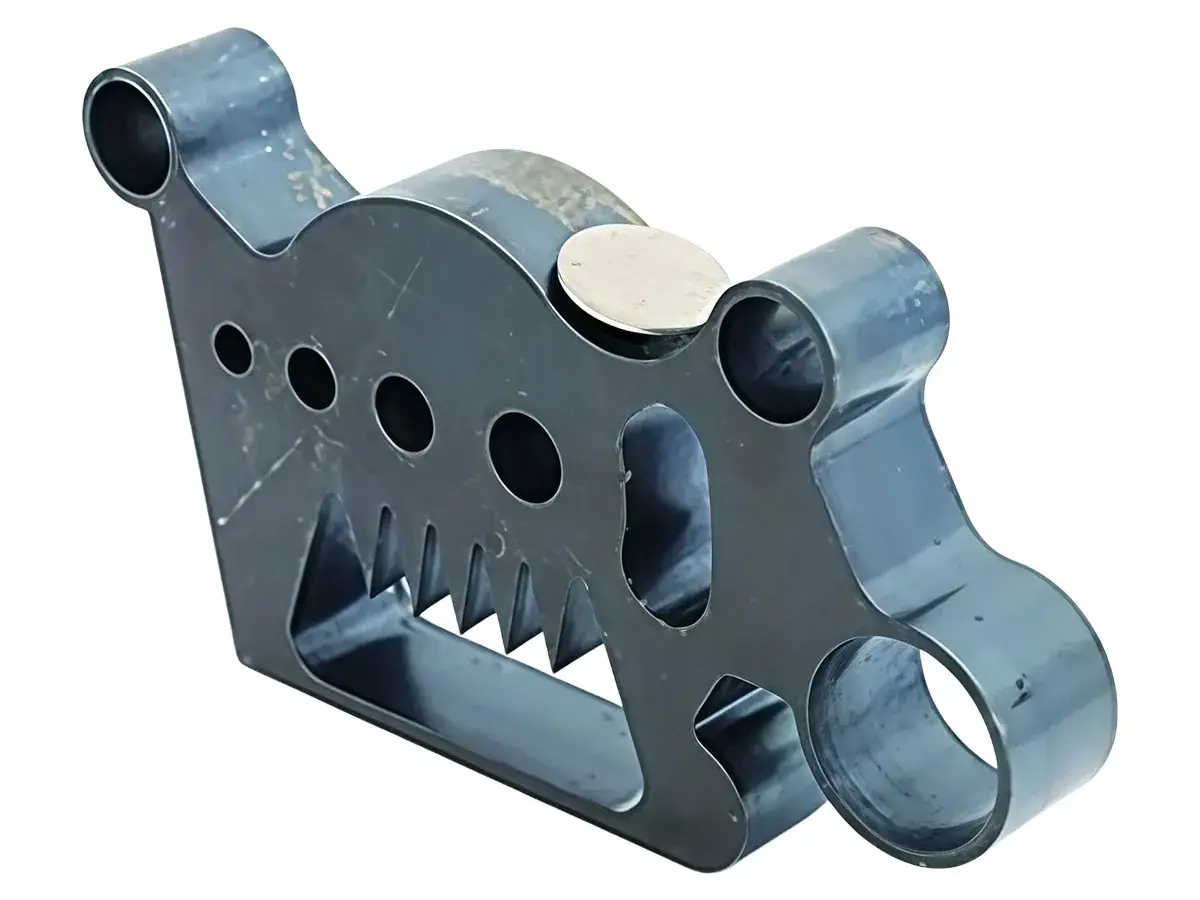

Sample Parts
Applications
Applications
Applications
Applications
Features
  • Fully enclosed design with CE-certified safety glass, widely recognized for safety and reliability
  • Automatic exchange table with a cycle time of around 15 seconds, reducing idle time and improving cutting efficiency
  • Integrated tube cutting capability, allowing both sheet and tube processing on a single machine
  • Electric clamping chuck, adaptable to different tube sizes for stable and reliable positioning
  • Efficient transmission system with high cutting accuracy for consistent results
YL-S-6025-12000W Fiber Laser Cutting System
Working Area & Travel
  • Working Area (L×W): 6050×2530mm
  • X-Axis Travel: 2530mm
  • Y-Axis Travel: 6050mm
  • Z-Axis Travel: 200mm
Accuracy
  • Positioning Accuracy (X/Y): ±0.05mm/m
  • Repeatability (X/Y): ±0.03mm
Machine Size
  • Overall Dimensions (L×W×H): 15000×4060×2400mm
Motion
  • Max. Positioning Speed (X/Y): 120m/min
  • Max. Acceleration (X/Y): 1.2 G
Power Supply
  • Phase: 3
  • Voltage: 380V
  • Frequency: 50Hz
Key Components

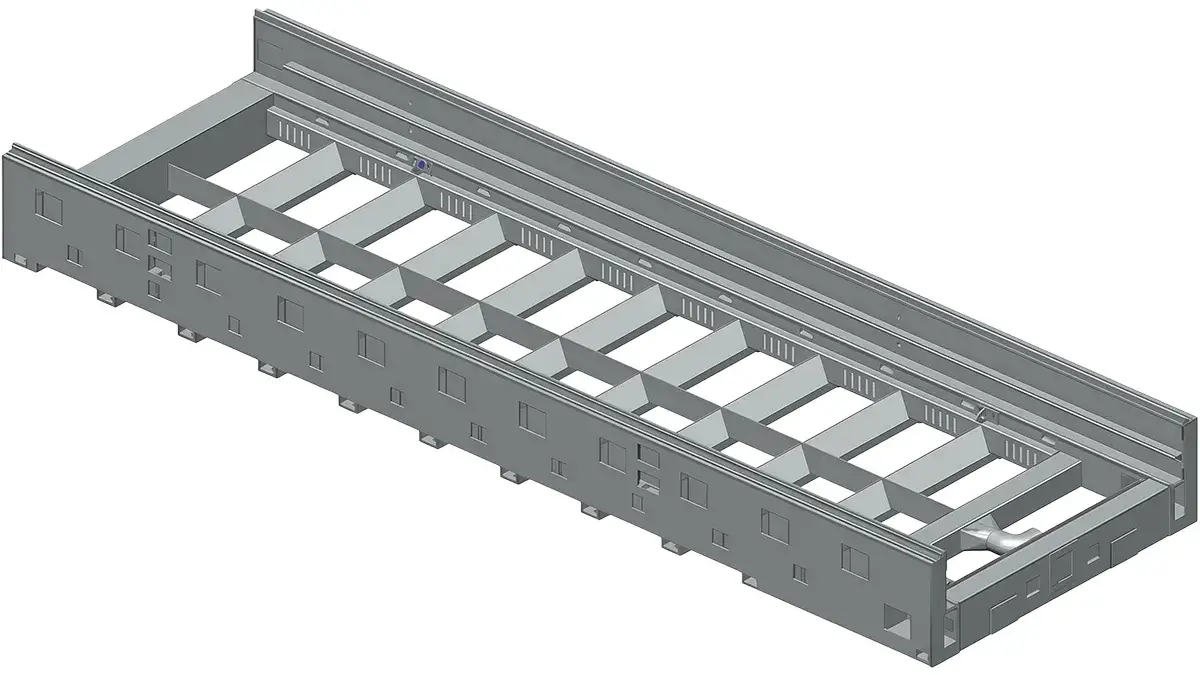

    • Machine Bed
      Machine Bed

      The base is built from high-quality welded steel plates, forming a rigid frame structure with strong vibration resistance, high rigidity, and stable performance.

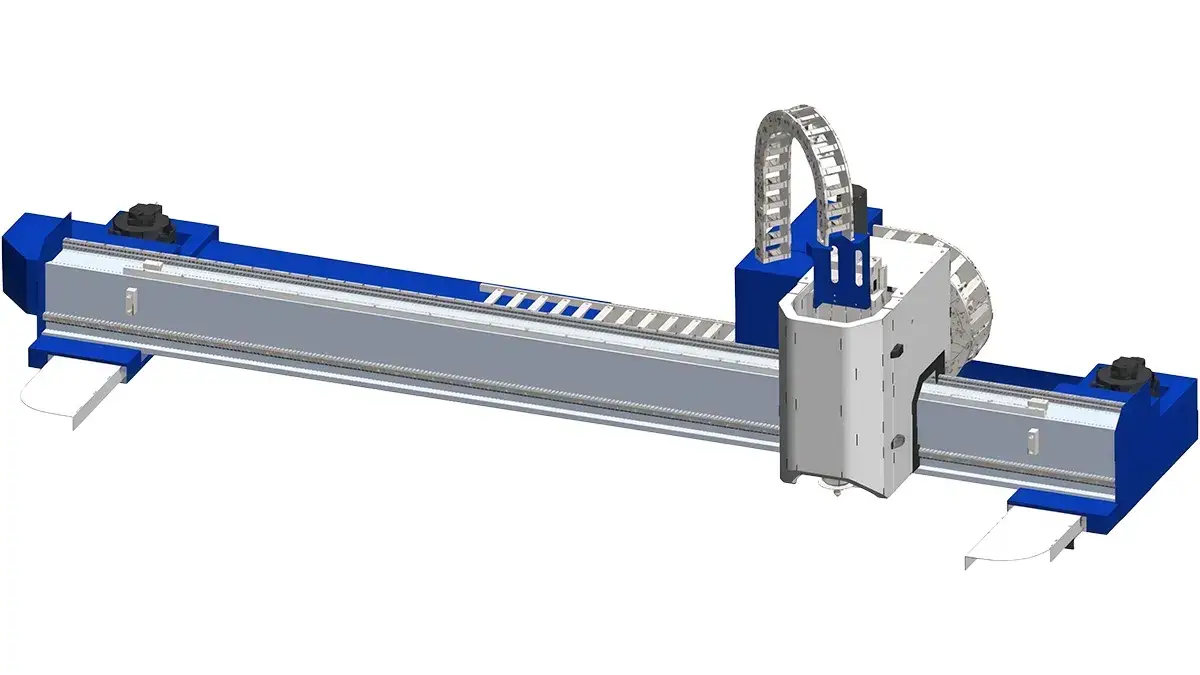

    • Gantry Beam
      Gantry Beam

      The beam is made from high-strength, lightweight steel, driven by dual servo motors. After welding and annealing, it is precision-machined using gantry processing equipment, ensuring stable accuracy and reliable performance.

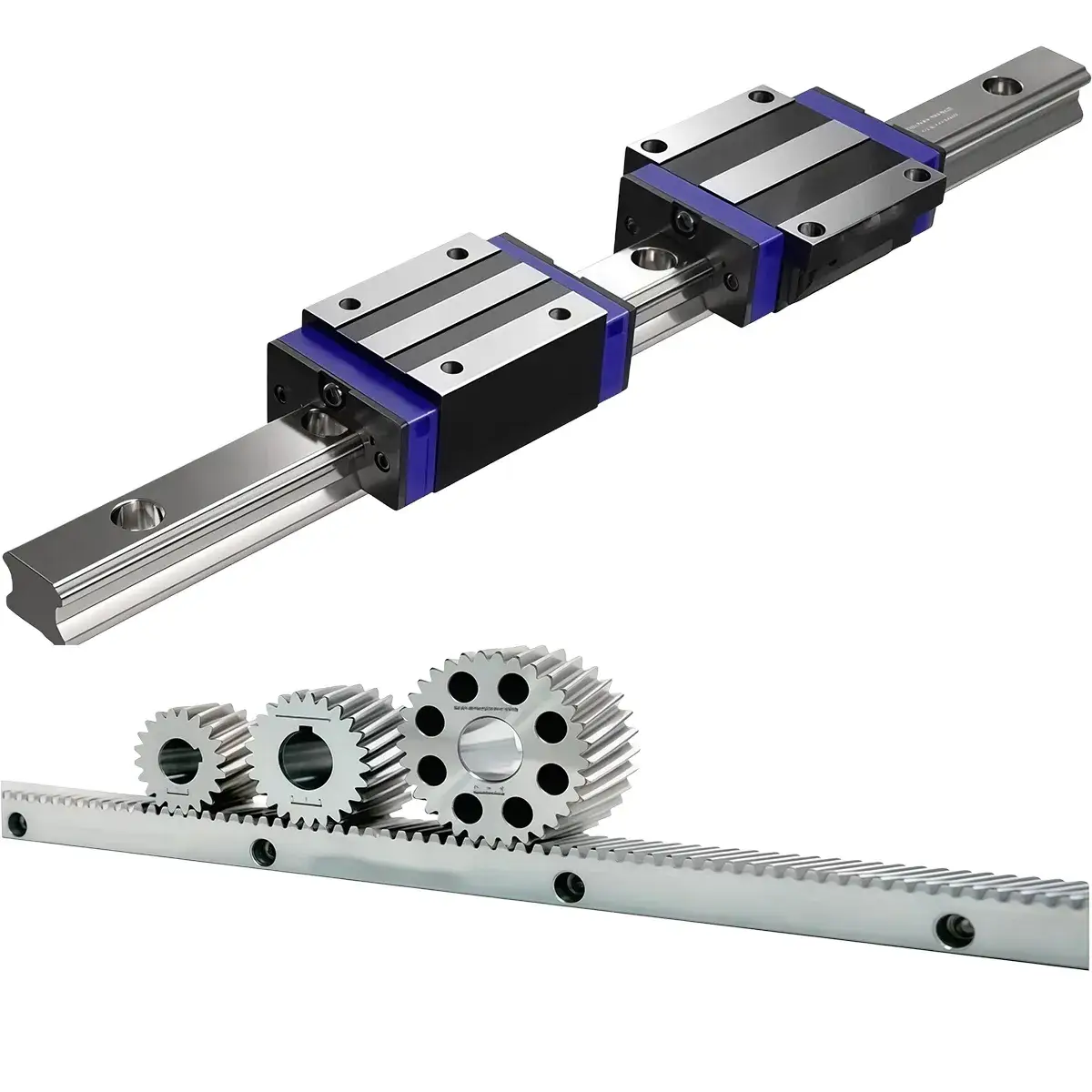

    • Rack and Guide System
      Rack and Guide System

      The rack uses high-precision ground racks (Grade 6) from Taiwan J&T, with installation accuracy controlled within 0.03 mm. Combined with a lubrication system, it ensures stable performance, high temperature resistance, and reduced wear over long-term operation.

      The linear guides are sourced from Taiwan, ensuring smooth motion, high precision, and consistent stability.

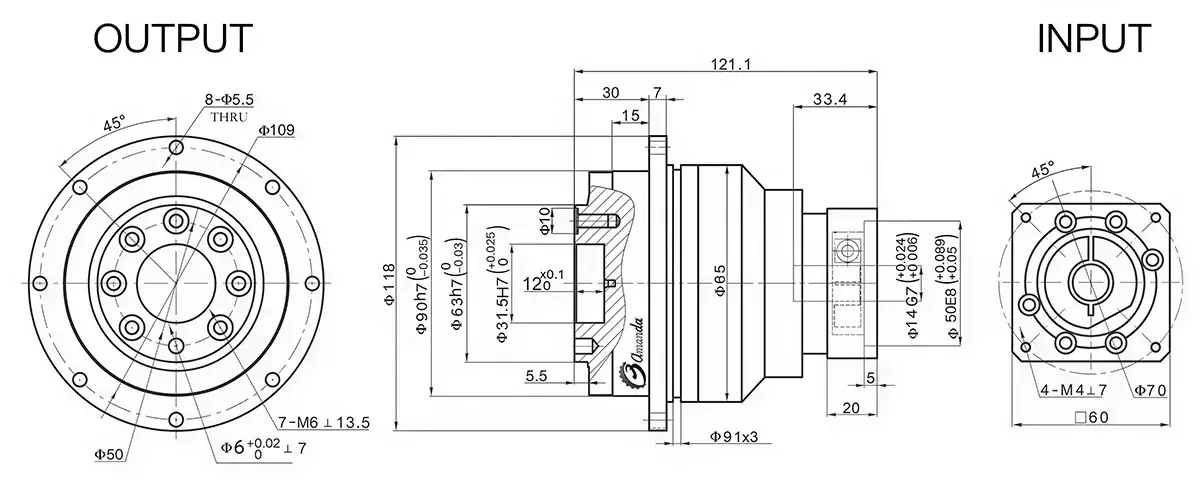

    • Gear Reducer
      Gear Reducer

      The reducer adopts a precision planetary gearbox from France (Motovario), featuring high load capacity, quiet operation, and stable power transmission under continuous use.

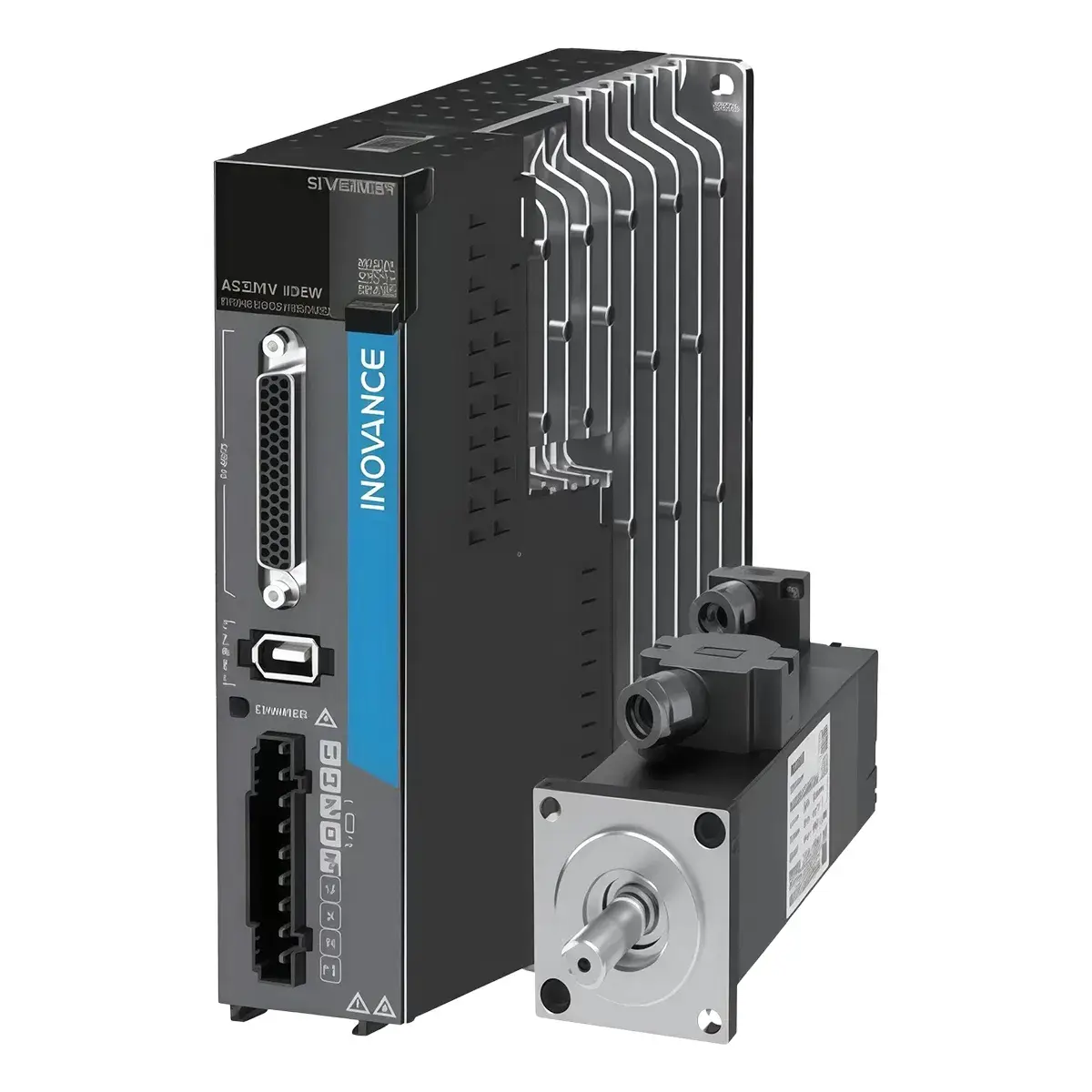

    • Drive Motor
      Drive Motor

      The SV6 series servo motors, developed by Inovance, provide high-performance AC servo control with a power range from 50 W to 7.5 kW. They support communication protocols such as Modbus, CANopen, and CANlink, allowing multiple drives to operate in a networked system through upper-level control.

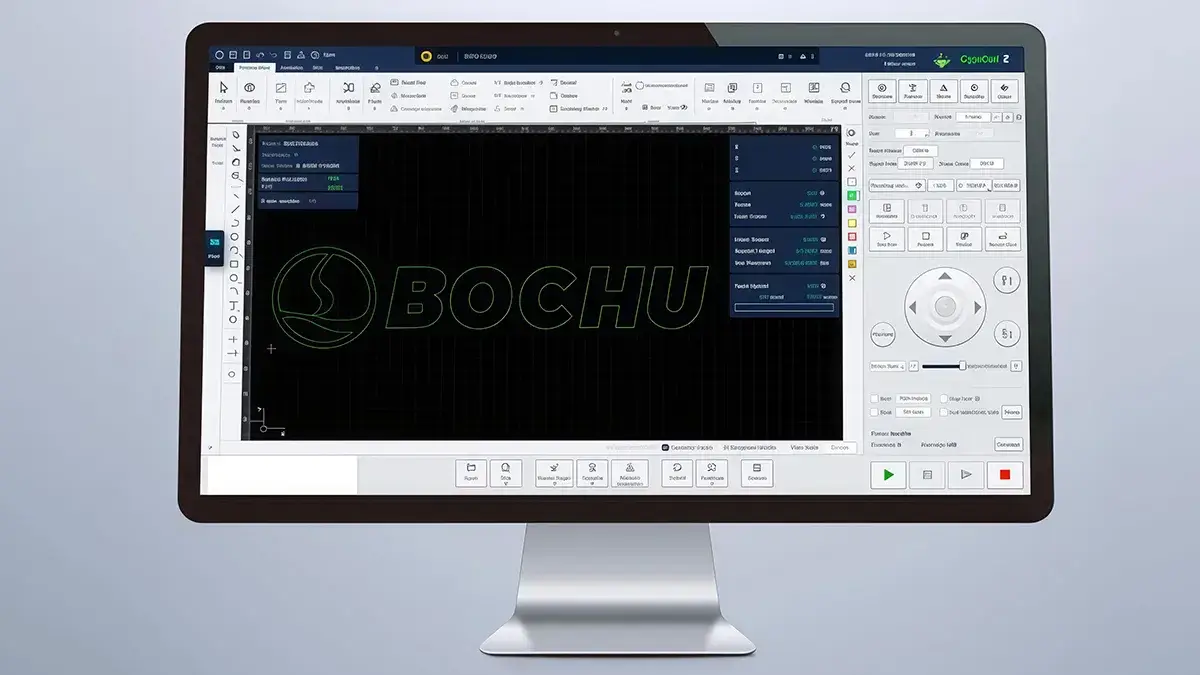

    • CNC Control System
      CNC Control System

      The BOCHU CNC system is designed for medium to high-power fiber laser cutting applications, providing advanced control and stable performance. It supports modular configuration and full-process automation, enabling integrated management from machine operation to production workflow, forming a closed-loop manufacturing solution.

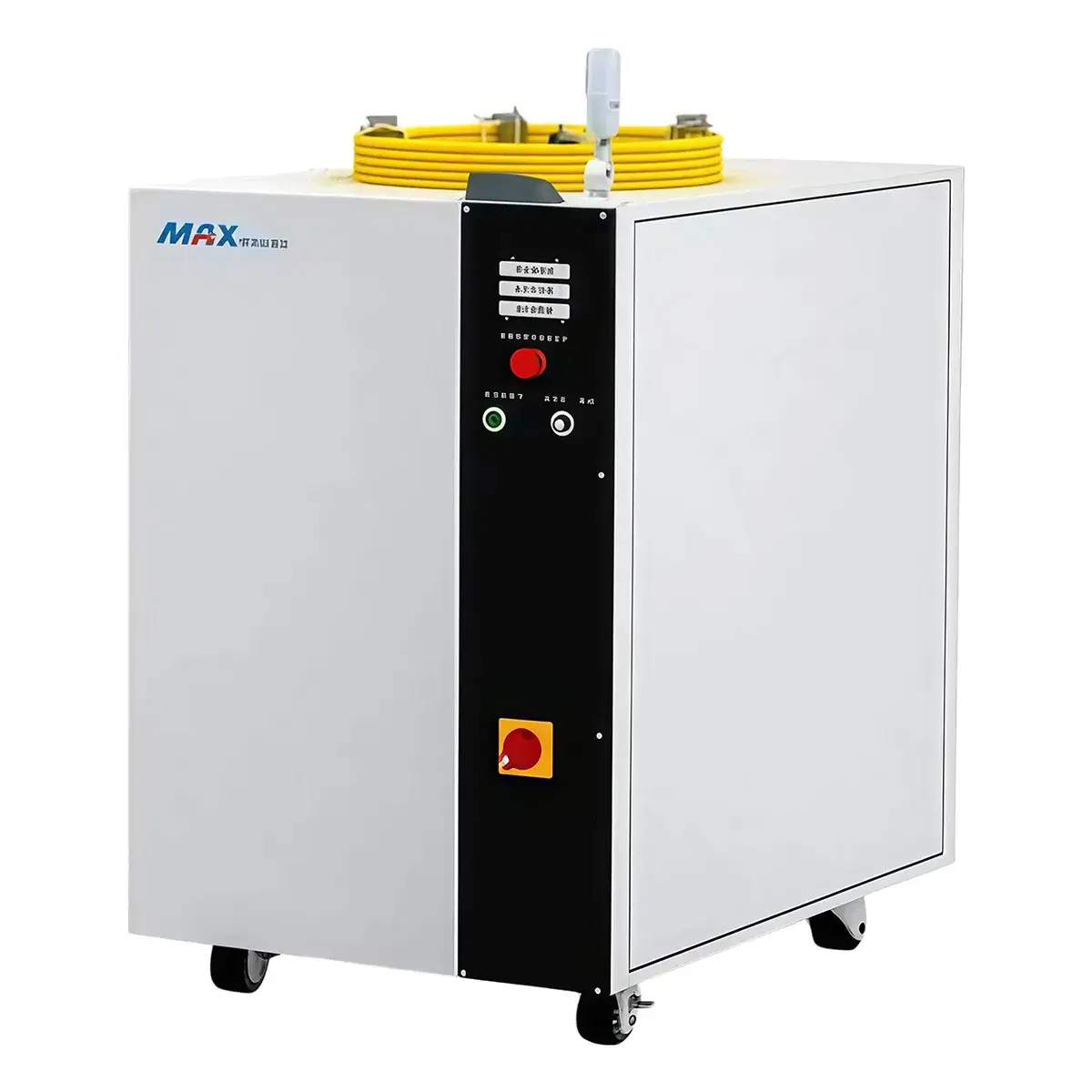

    • Fiber Laser Source
      Fiber Laser Source

      The 12,000 W fiber laser delivers high beam quality for precise cutting performance. It offers both continuous and modulated pulse modes, helping reduce the heat-affected zone during processing. Suitable for a wide range of applications, it can process materials such as various steels, aluminum and nickel-based alloys, titanium alloys, and alumina ceramics, supporting precision cutting, drilling, and sheet metal fabrication.

      Specifications PDF Download
    • Main Machine Frame

      The fiber laser cutting machine consists of the machine bed, gantry beam, worktable, dust extraction system, Z-axis, control system, as well as gas and water circuits.

    • Worktable

      The worktable includes a fixed base frame and a cutting table. The base frame is fabricated using welded steel tubes and formed as an integrated structure, providing strong load-bearing capacity.
