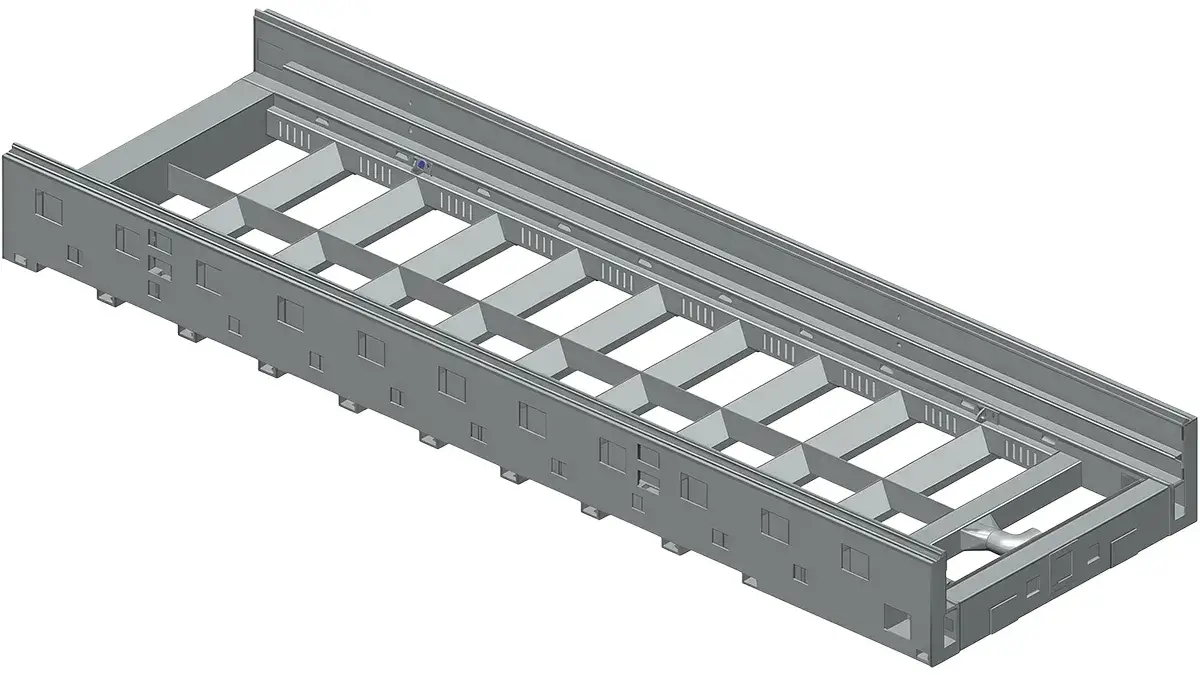

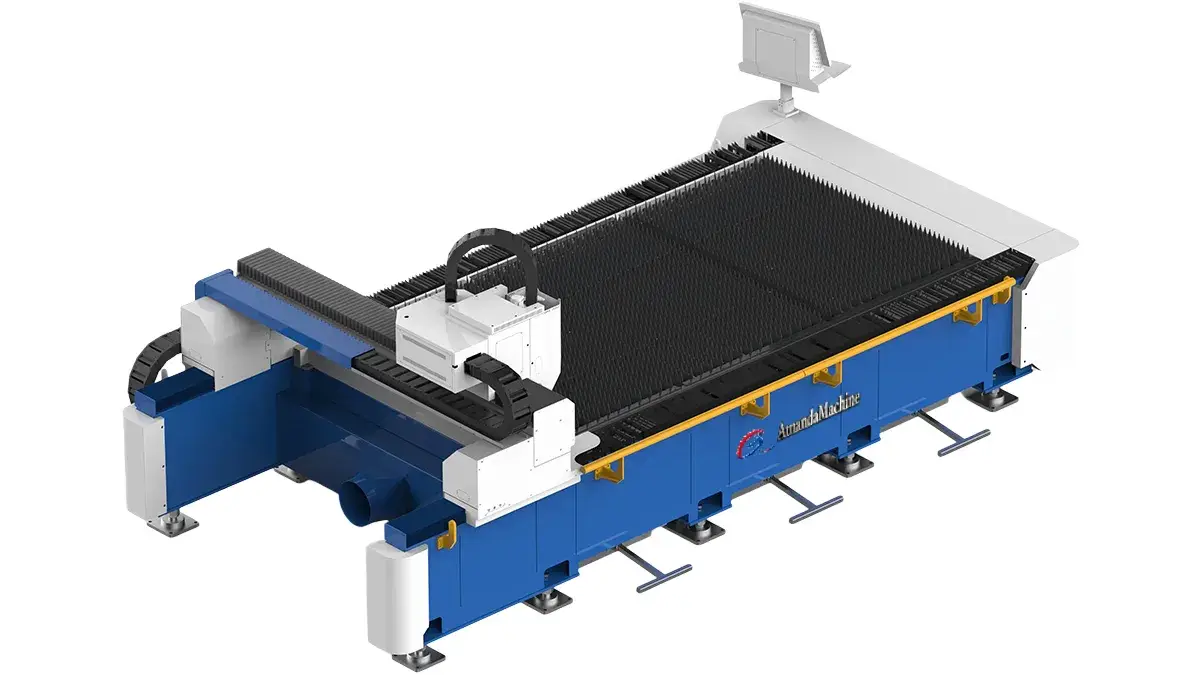

The machine bed is constructed from high-strength steel plates using a fully welded structure, optimized through finite element analysis (FEA) to achieve excellent dynamic and static performance. A secondary aging heat treatment process is applied to eliminate internal stress, followed by precision machining using a large gantry milling machine, ensuring high vibration resistance and long-term stability. A segmented dust extraction airflow system is integrated into the bed, effectively removing cutting fumes and heat during operation. This helps maintain a cleaner working environment while reducing the risk of thermal deformation.

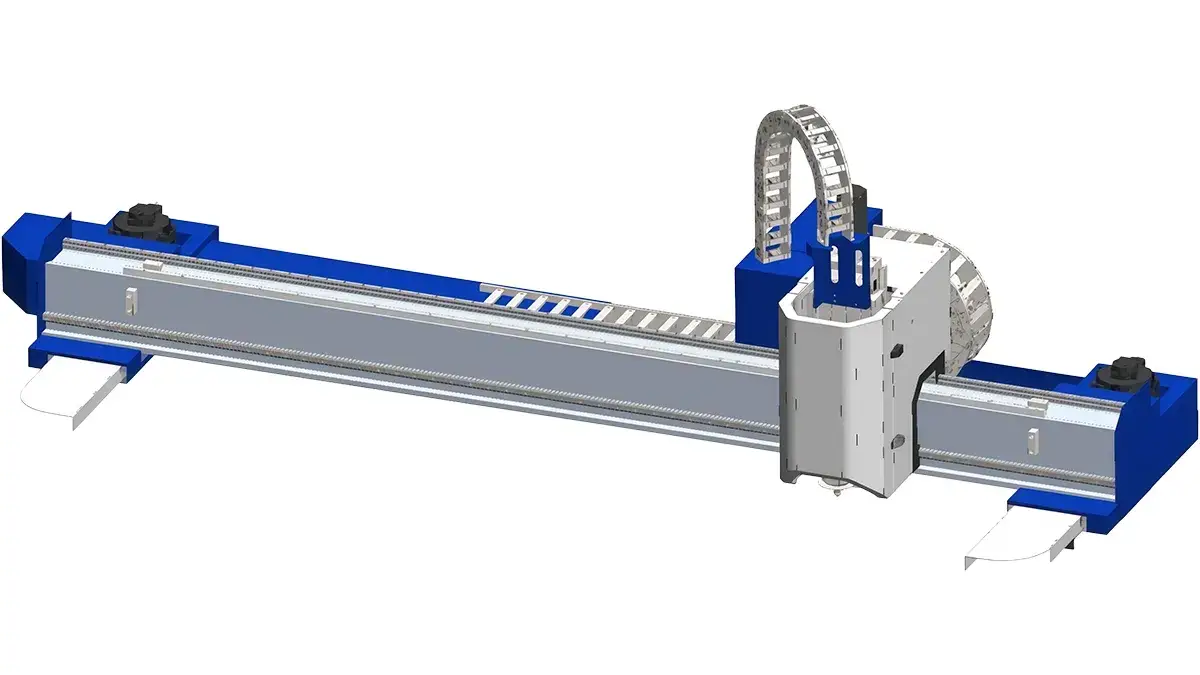

The gantry beam is made from high-strength, lightweight steel and driven by a dual servo system. After welding and annealing, it undergoes gantry machining to ensure stable precision and consistent performance.

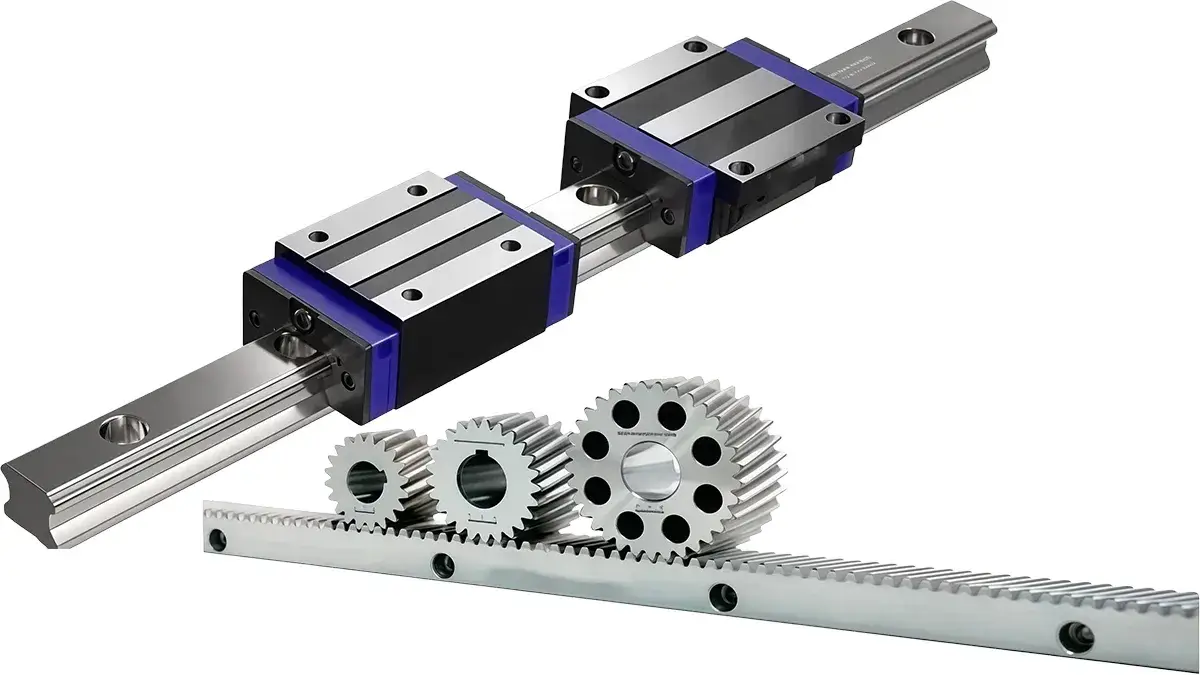

The rack uses high-precision ground racks (Grade 6) from Taiwan J&T, with installation accuracy controlled within 0.03 mm. Combined with a lubrication system, it ensures minimal accuracy deviation, high temperature resistance, and strong wear resistance over long-term operation.

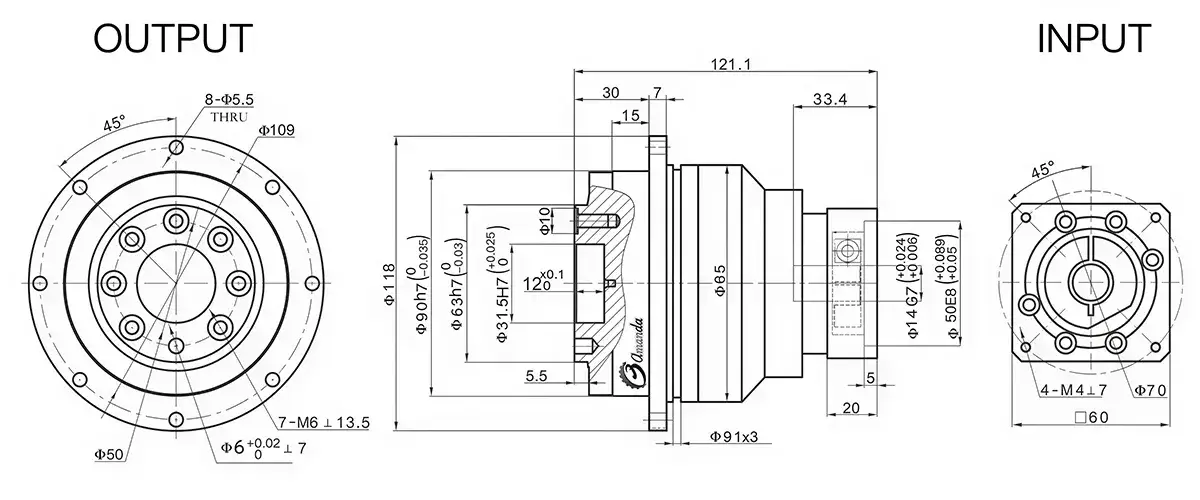

The laser cutting machine is equipped with a precision planetary gearbox from Motovario (France), featuring high load capacity, quiet operation, and stable power transmission under demanding working conditions.

The SV630P series servo motors offer a power range from 50 W to 7.5 kW and support communication protocols such as Modbus, CANopen, and CANlink.

They feature adaptive rigidity adjustment, inertia identification, and vibration suppression functions, making the servo system stable, responsive, and easy to operate.

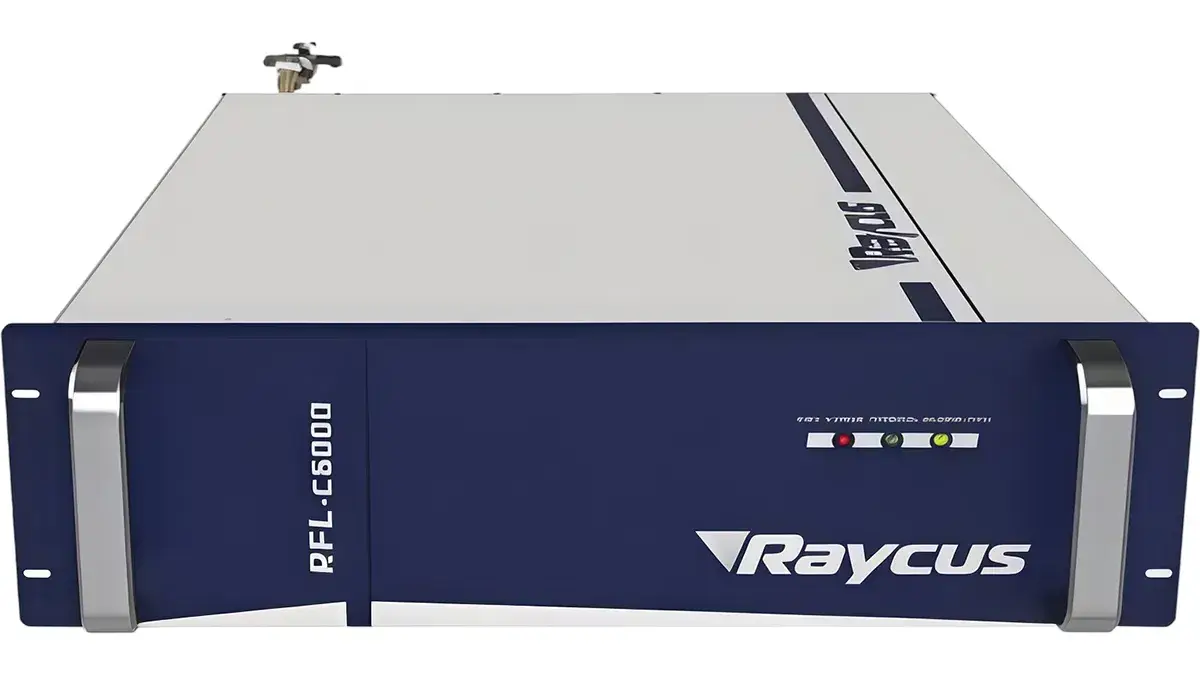

The 6000 W fiber laser delivers high beam quality for precise cutting performance. It supports both continuous and modulated pulse modes, helping reduce the heat-affected zone during processing. Its modular all-fiber design ensures stable performance and reliable operation over long-term use.

The laser head features real-time temperature monitoring and automatic focus compensation. It also supports edge detection, intelligent piercing, smart cutting control, and anti-collision protection, ensuring stable cutting performance and improved process reliability.

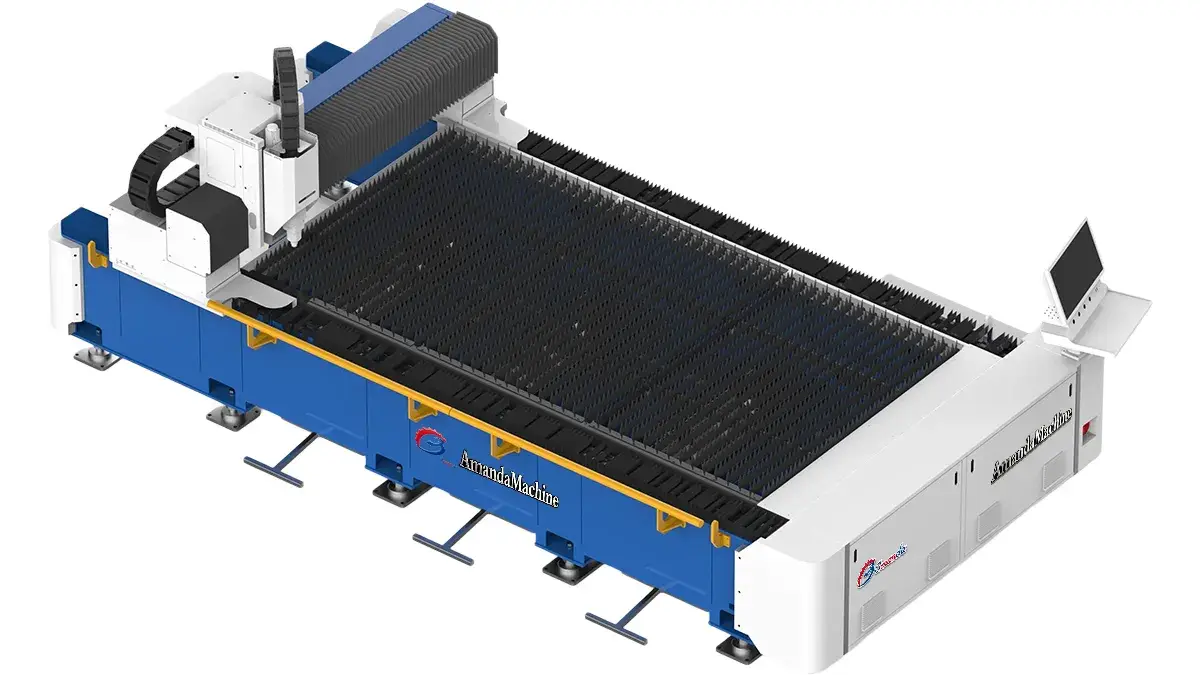

The worktable consists of a fixed base frame and a cutting table. The base frame is fabricated using welded steel tubes and formed as an integrated structure, providing high load capacity and convenient material loading. Its structure remains simple and stable, while the segmented rack design helps minimize thermal deformation caused by heat accumulation during cutting.

The CNC system supports modular configuration and provides flexible solutions for automation and production integration, enabling efficient and adaptable machine operation.
