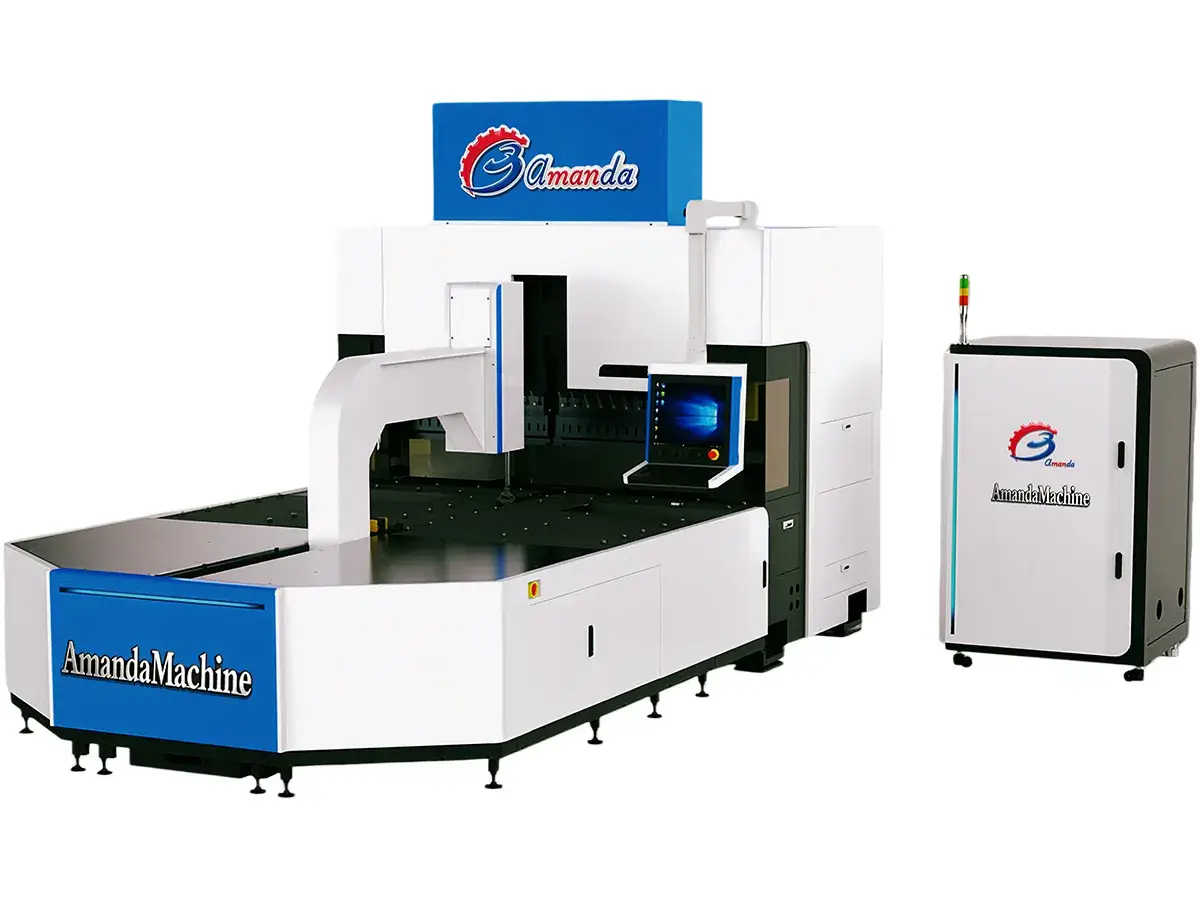

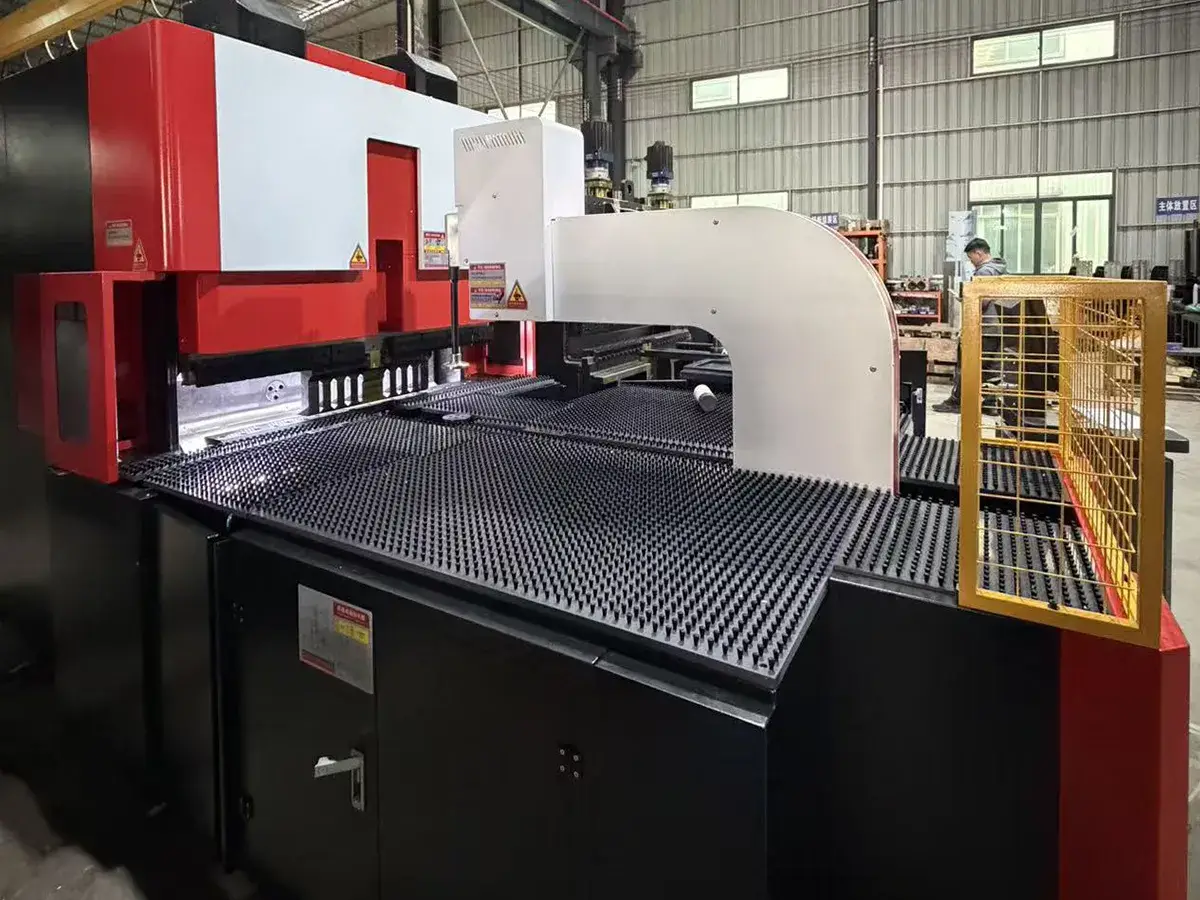

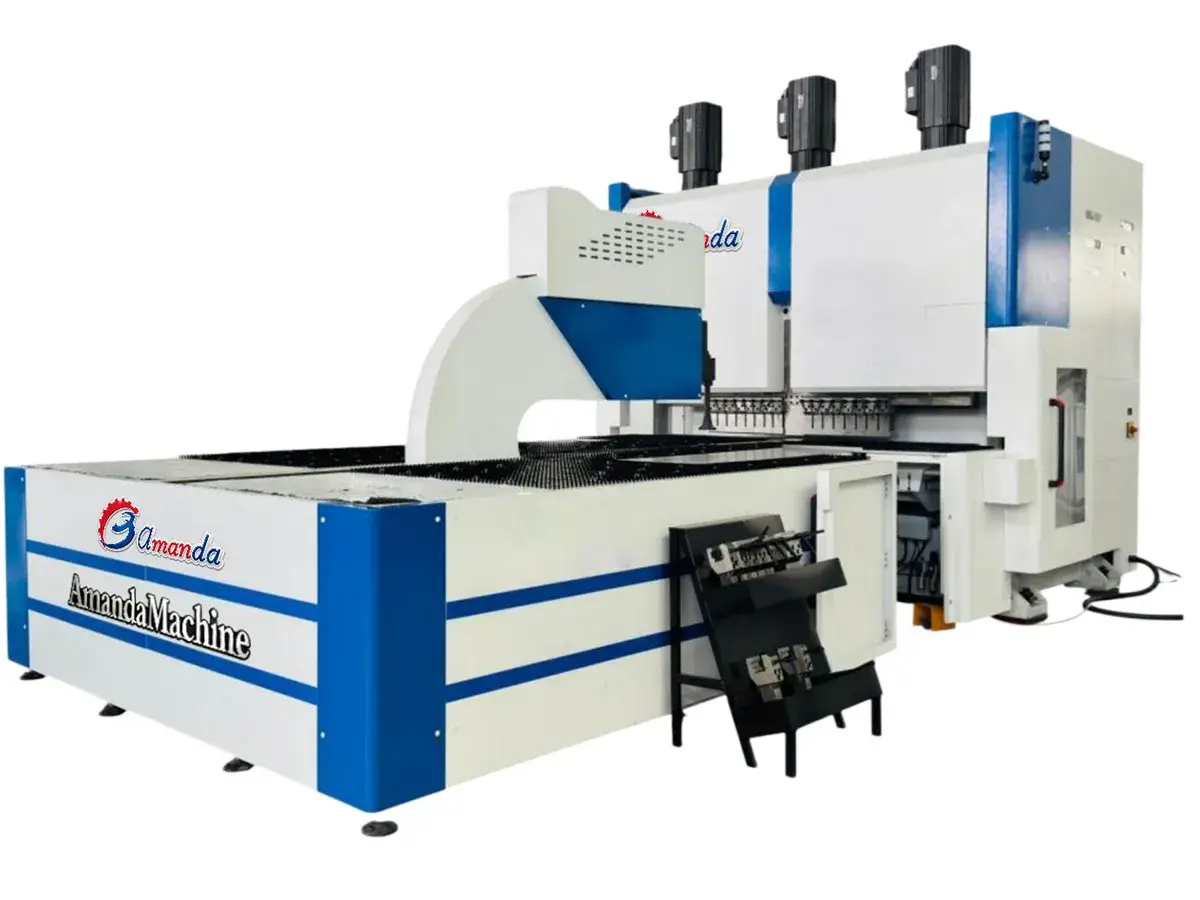

Automated Panel Bender, CNC Bending Center

An automated panel bender is designed for efficient multi-side bending of sheet metal parts, making it ideal for producing box-shaped components and large panels with consistent accuracy. Built on a high-strength welded frame optimized through finite element analysis, the automatic bending solution maintains stable performance over long-term operation. Through multi-axis synchronized motion and universal bending tools, it completes complex profiles without frequent tool changes, significantly improving workflow continuity. Compared with conventional press brakes, it can increase overall bending efficiency by 3–5 times while reducing energy consumption by up to 50%, and with an integrated suction cup system, it enables precise material feeding and controlled rotation during processing.

Request a Quote
Technical Specifications
Axes Configuration (Standard 14-Axis)
  • Bending Axes: X1/X2 (forward/backward)
  • Bending Axes: Y1/Y2 (up/down)
  • Pressing Axes: Z1/Z2 (upper/lower)
  • Feeding Axis: U1
  • Positioning Axis: U3 (auxiliary workpiece positioning)
  • Lateral Positioning Axes: D1/D2 (left/right alignment)
  • Workpiece Rotation Positioning Axis: C1 (high-precision reducer, repeatability 5 arc sec)
  • Upper Rotation Axis: C3
  • Ejection Lifting Axis: H1
  • Upper Pressing Axis: H3 (auxiliary holding)
X-Axis Effective Travel 120mm
Y-Axis Effective Travel 305mm
Z-Axis Effective Travel 470mm (max. opening height: 457 mm)
Max. Bending Width 1,200mm (inner frame distance: 1300mm)
Max. Bending Height Side A: 450 mm Side B: 170 mm
Max. Bending Speed 0.2 sec/cycle
Min. Sheet Size 350×250mm
Sheet Thickness Mild steel: 1.2mm Stainless steel: 0.8mm Aluminum: 2mm
Bending Accuracy Angle deviation: ±0.5° Dimension deviation: ±0.1mm
C1 Axis Rotary Table Diameter 100mm
Min. Distance from C Axis Center to Tool Tip 150mm
Max. Unfolded Size of Sheet Metal 1200×1200mm
Rated Voltage 380VAC
Peak Power 25kW
Average Powe 8kW
Noise Level Approx. 60dB
Dimensions (L×W×H) Approx. 3610×1630×2700mm
Machine Weight Approx. 8 tons

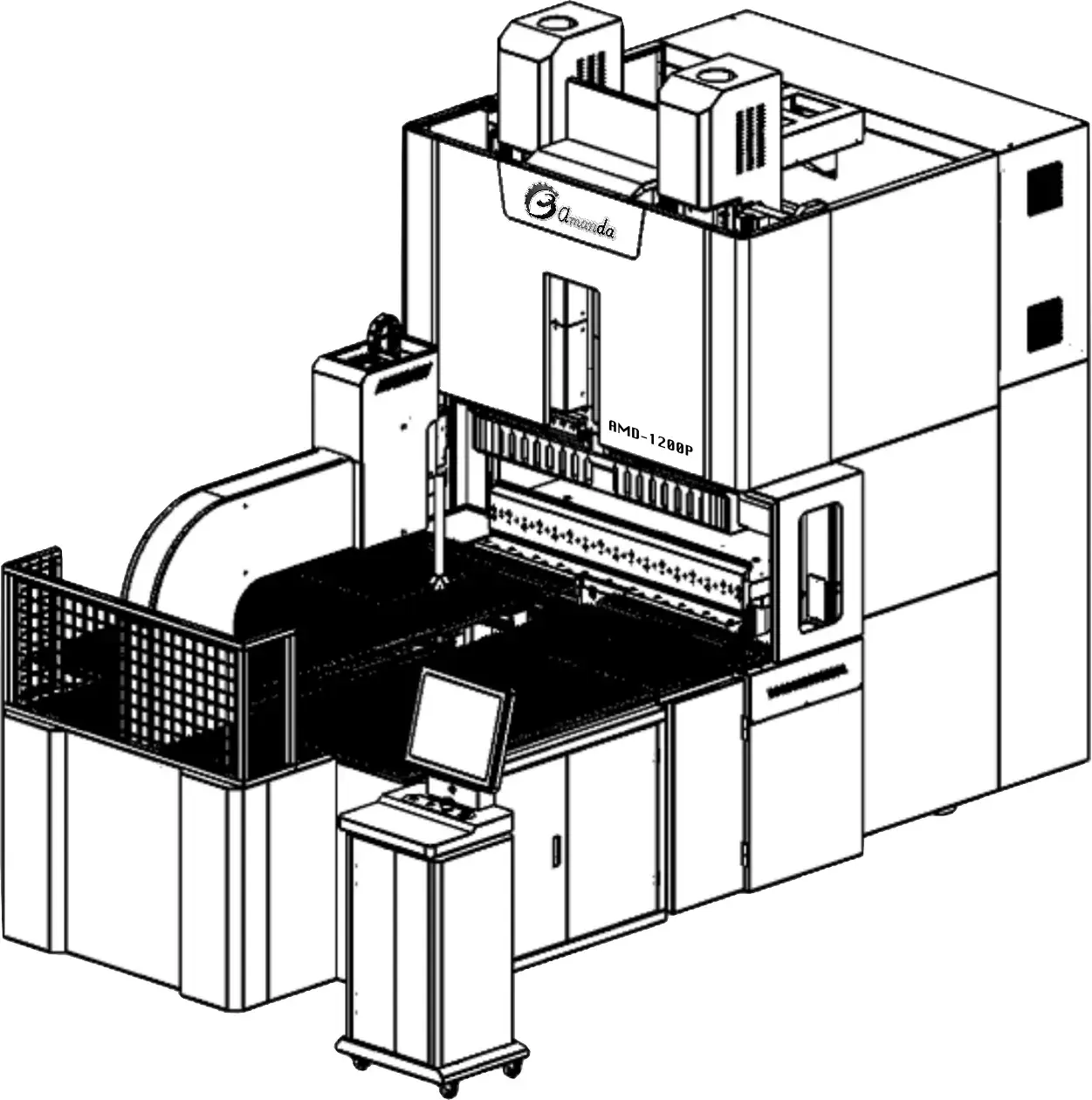

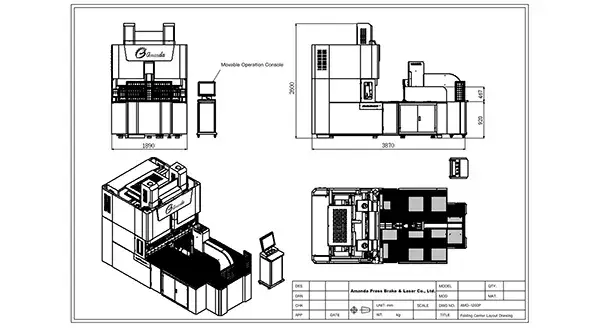

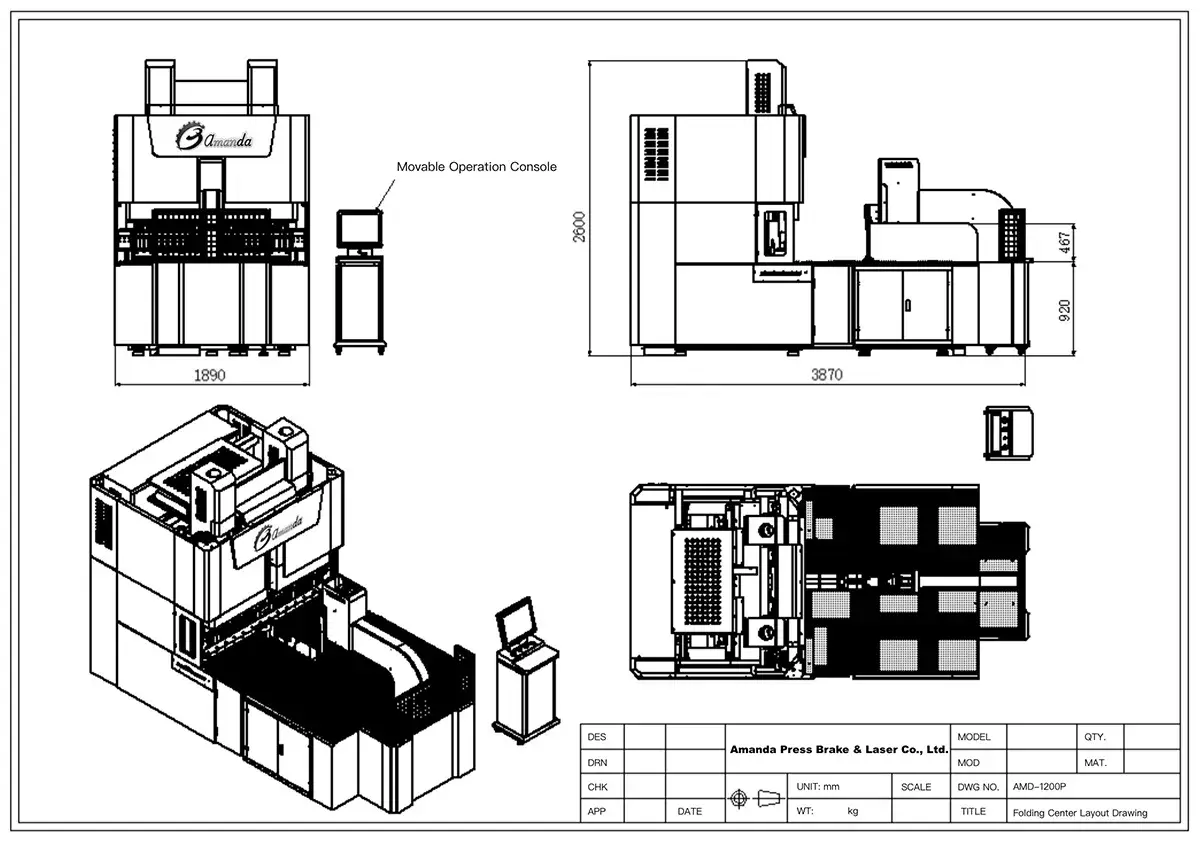

Machine Layout & FootprintMachine Layout & Footprint

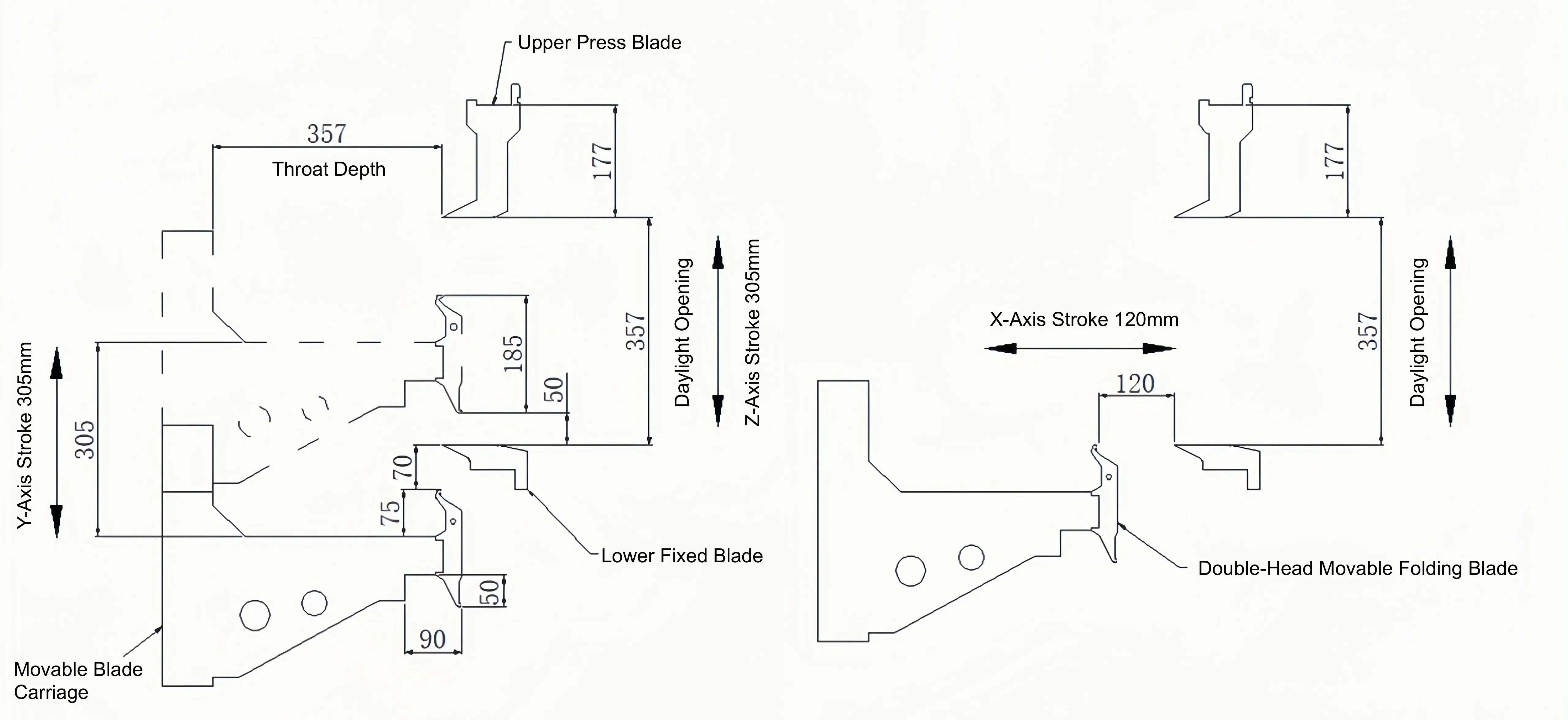

Tooling Clearance DimensionsTooling Clearance Dimensions
Structural Features
    • Machine Structure
      Machine Structure

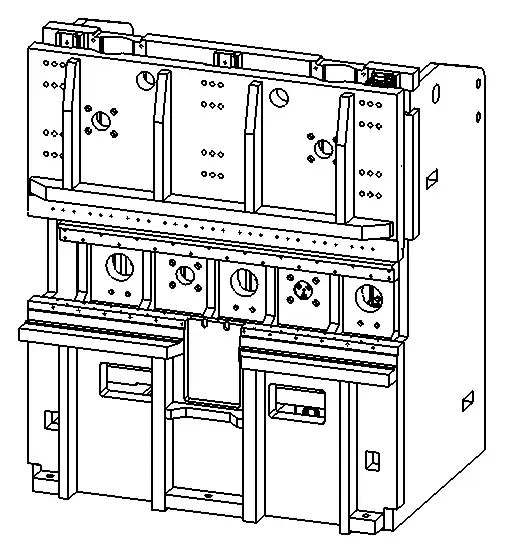

      The main machine components, including the frame, movable tooling seat, and upper beam assembly, are built from welded steel plate construction. A complete heat treatment process is applied to relieve residual stress, and reinforced rib structures are integrated to enhance stability. Optimized through finite element analysis, the overall structure delivers high strength, rigidity, and long-term operational stability.

    • Drive System
      Drive System

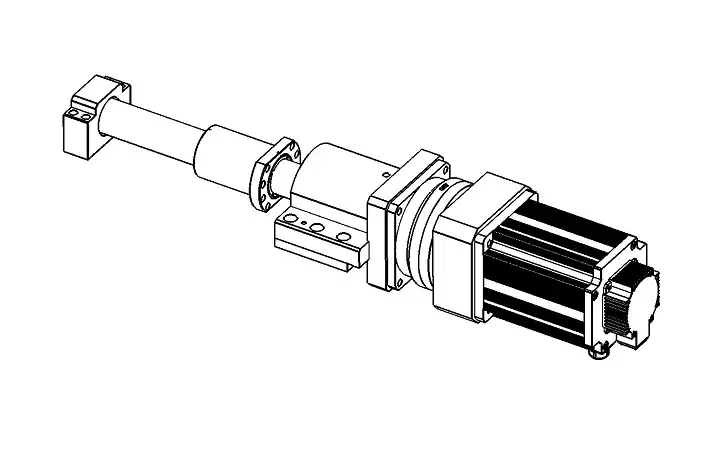

      The X, Y, Z, and U axes are driven by AC servo motors, directly coupled for high rigidity and smooth, responsive motion, driving the ball screws for continuous transmission.

      The Y and Z axes are equipped with servo motors featuring an automatic holding brake. During power loss, the brake engages immediately to lock the motor shaft, preventing unintended movement and ensuring operational safety.

    • C1 Workpiece Rotation Axis
      C1 Workpiece Rotation Axis

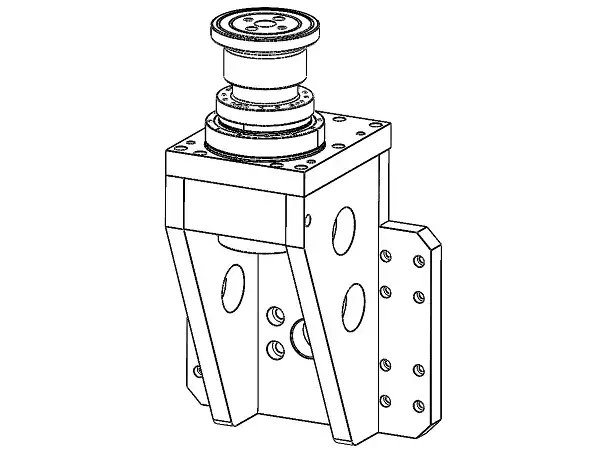

      The C axis uses a rotary servo actuator to achieve both rapid rotation and precise positioning. It offers high rotational accuracy with repeatability up to 5 arc seconds.

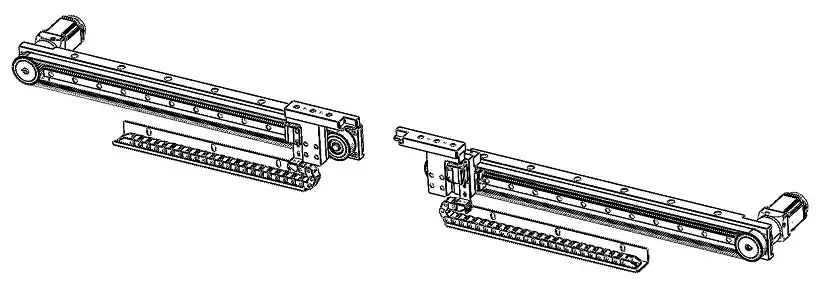

    • D1 / D2 Positioning Axes
      D1 / D2 Positioning Axes

      The D1 and D2 left-right positioning axes are driven by AC servo motors combined with high-precision reducers and synchronized belt transmission. The left and right positioning blocks can move independently to accurately position different workpieces. The positioning blocks feature a lifting mechanism; after positioning is completed, they automatically lower to avoid interference, preventing collisions during workpiece rotation.

    • Bending Tooling
      Bending Tooling

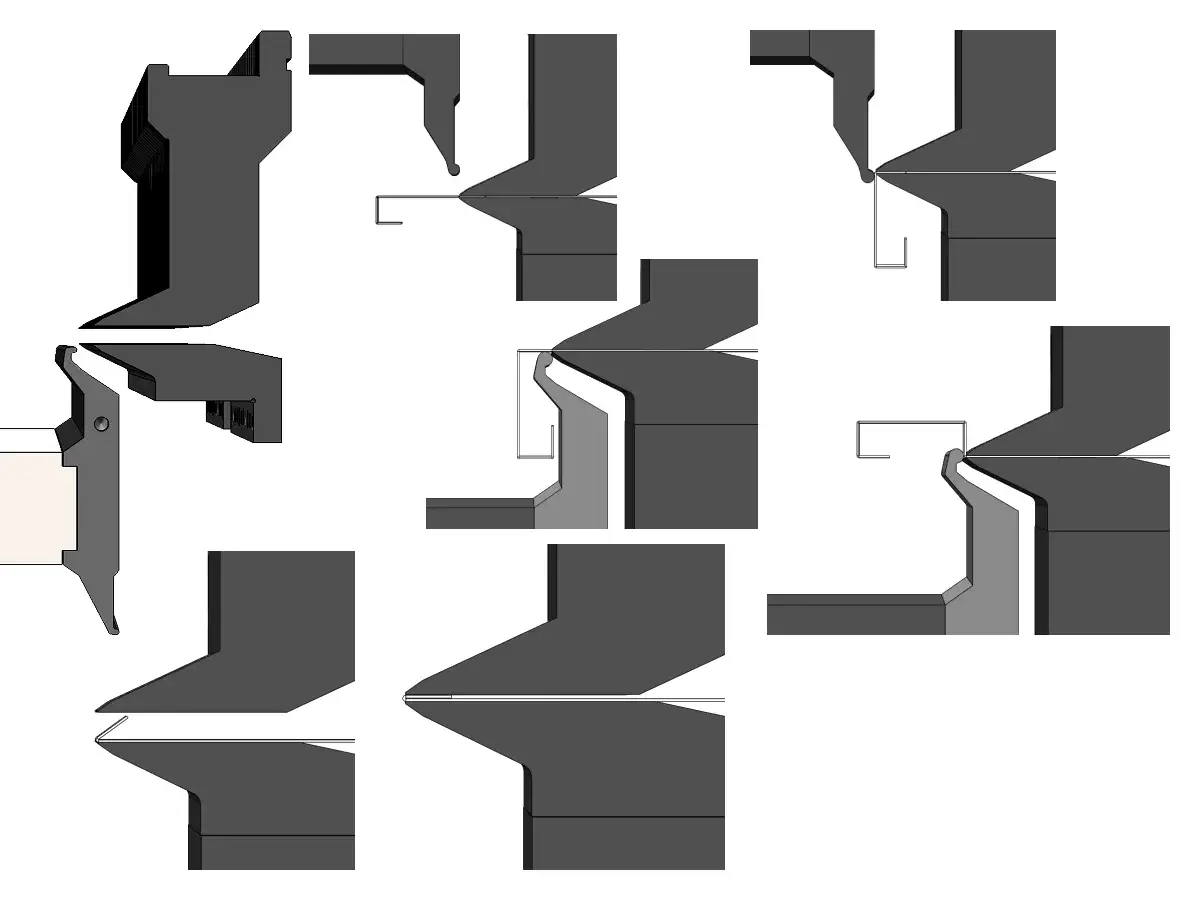

      The panel bender is equipped with multifunctional bending tools that allow a wide range of profiles to be formed without tool changes. A single tooling setup can complete multi-side bending in one operation, improving process continuity and efficiency.

    • Safety & Protection
      Safety & Protection

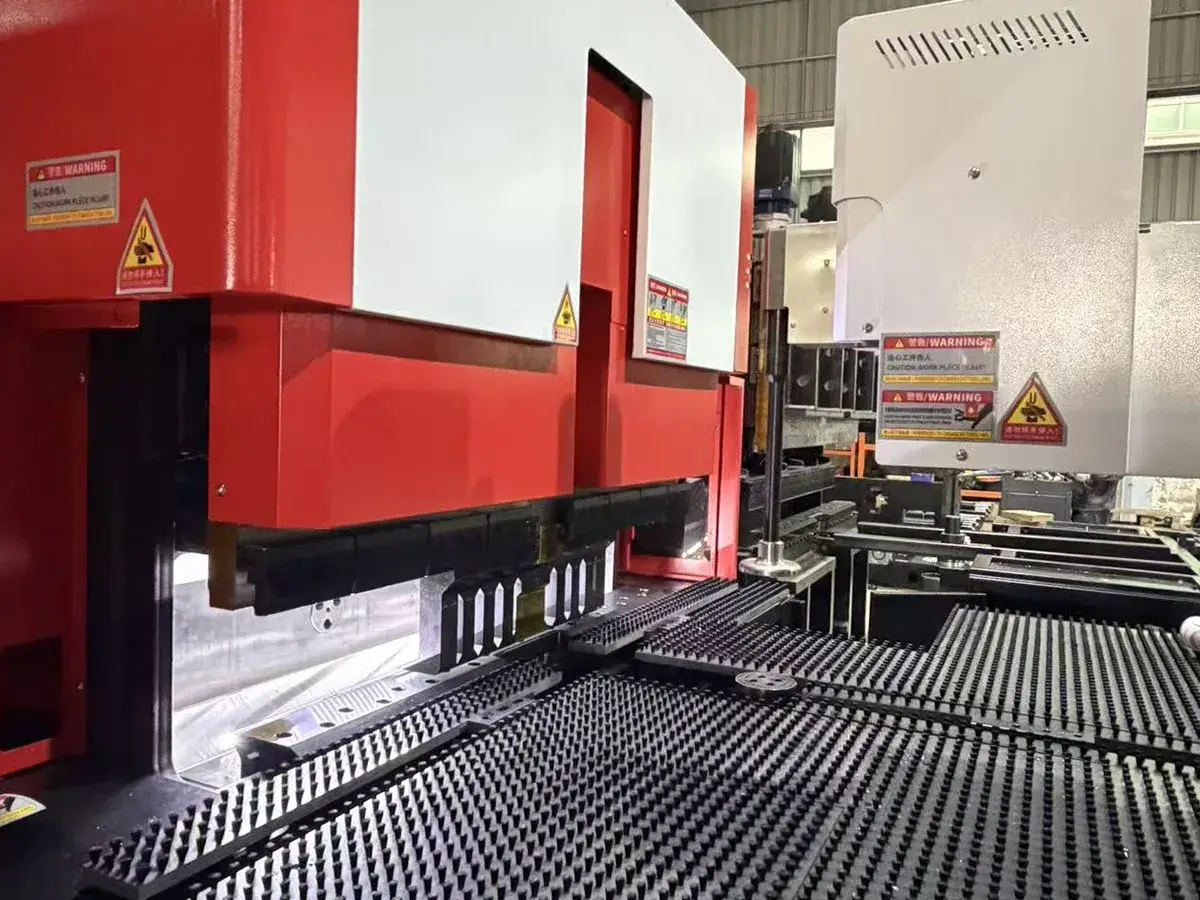

      The panel bender is equipped with a fully enclosed sheet metal guarding structure. Optional safety fencing and light curtain systems can be installed around the machine to prevent unauthorized access to the working area and enhance operational safety.

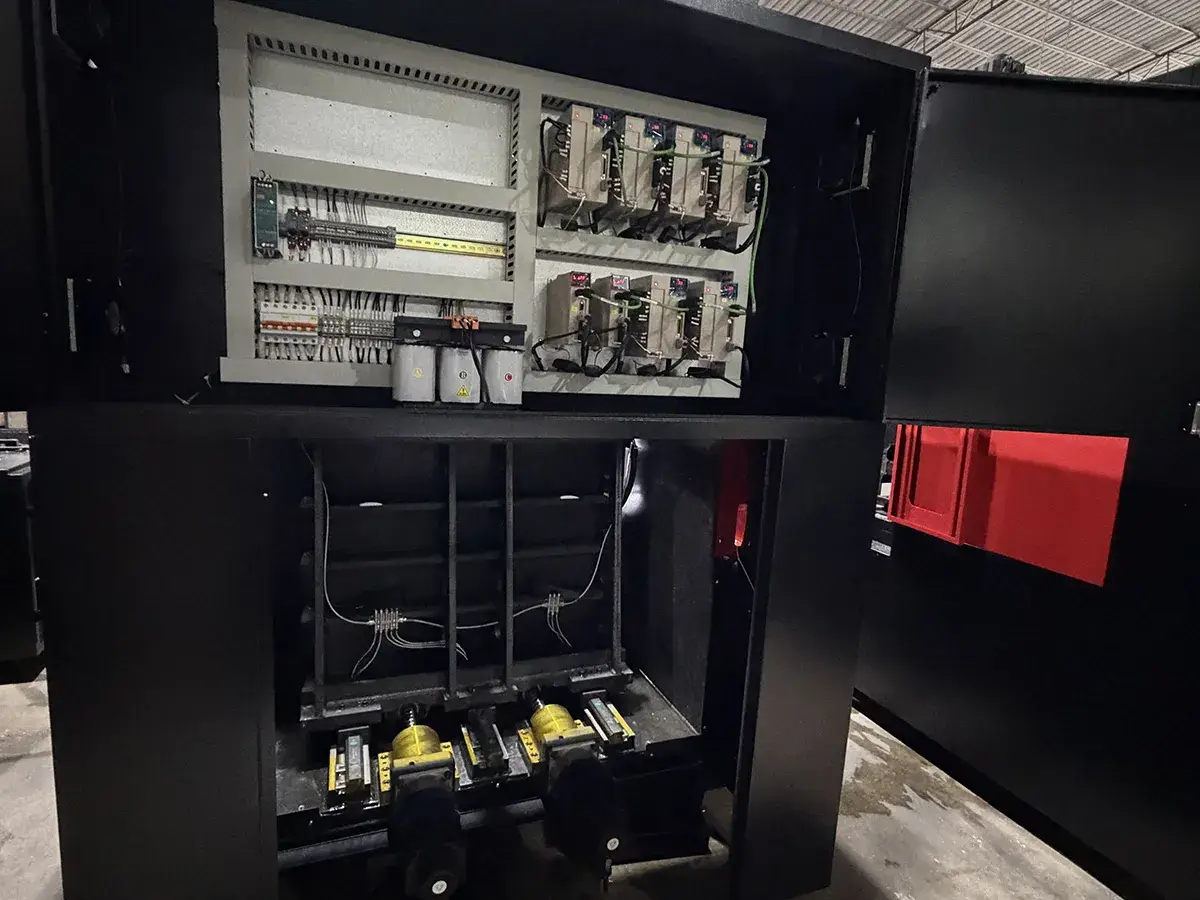

    • Electrical System
      • The electrical system features self-diagnostic capability, allowing operators and maintenance personnel to monitor machine status in real time through indicators and the control interface.
      • The bender is equipped with an alarm system and emergency stop function to prevent damage caused by unexpected faults.
