Single Crank Straight Side Press, CT1 Series

Single Crank Straight Side Press, CT1 Series

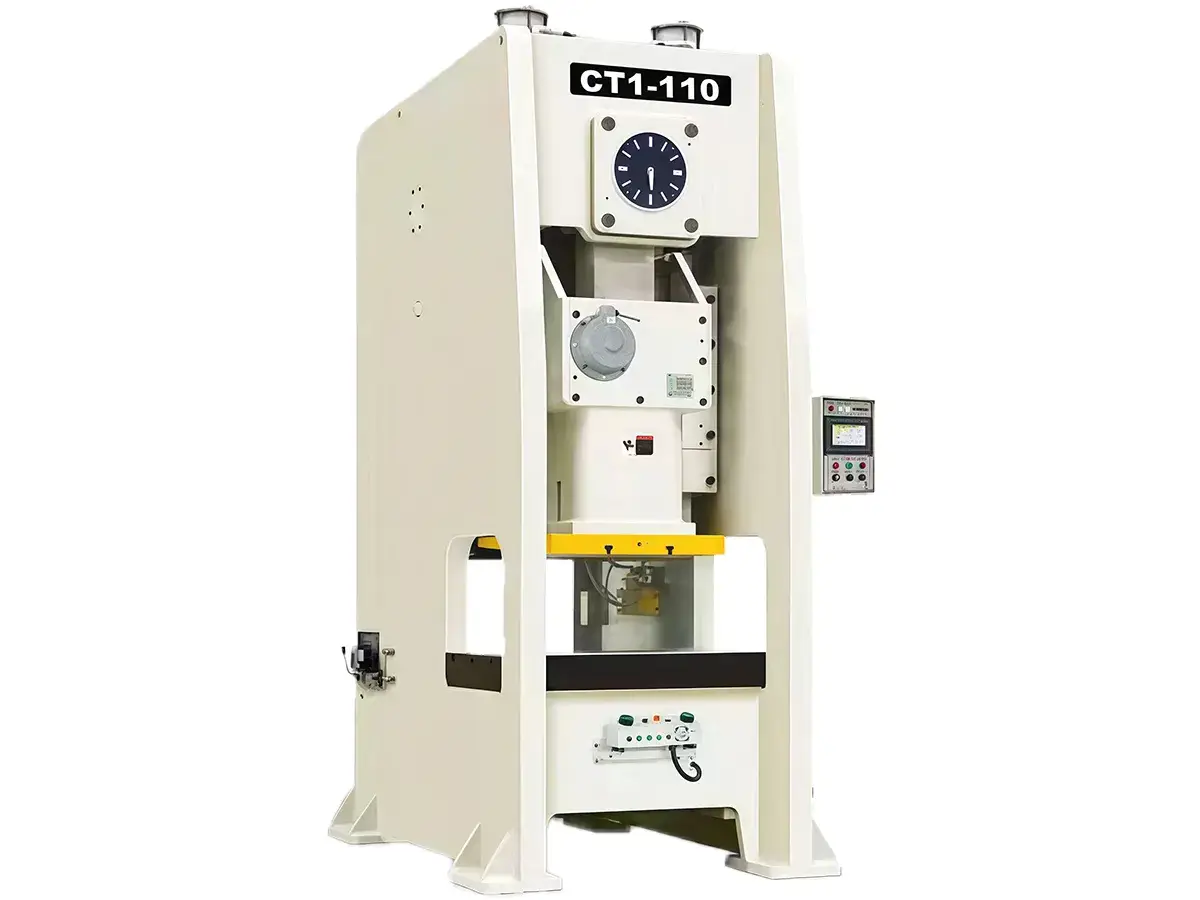

A single crank straight side press is designed for precision stamping with consistency, especially in continuous die production. It uses a closed-frame structure that keeps the forming process stable, making it easier to maintain accuracy over long production runs. It is well suited for precision progressive die applications where repeatability and reduced tooling wear are important.

Request a Quote
Technical Specifications
Model Unit CT1-80 CT1-110 CT1-160 CT1-200 CT1-260
Type - V H V H V H V H V H
Capacity Ton 80 80 110 110 160 160 200 200 260 260
Rated Tonnage Point mm 4 2 6 3 6 3 6 3 7 3.5
Strokes Per Minute spm 150 70 180 80 200 90 200 100 250 150
Stroke Length mm 35-80 80-120 30-60 60-90 25-50 40-70 20-50 50-70 20-40 40-50
Die Height (S.D.A.U) mm 340 380 360 410 460 510 460 510 500 550
Slide Adjustment mm 80 80 80 80 100 100 110 110 120 120
Slide Area (L.R×F.B) mm 560×420×70 650×470×80 700×550×90 850×630×90 950×700×100
Bolster Area (L.R×F.B) mm 740×550×90 880×600×110 960×800×140 1120×820×160 1200×840×180
Main Motor kW 7.5×4 7.5×4 11×4 11×4 15×4 15×4 18.5×4 18.5×4 22×4 22×4
Air Pressure kg/cm² 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6 5-6
Precision Standard mm CNS(JIS) 1 class CNS(JIS) 1 class CNS(JIS) 1 class CNS(JIS) 1 class CNS(JIS) 1 class
Die Cushion Capacity Ton 3.6×2 3.6×2 6.3×2 6.3×2 10×2 10×2 14×2 14×2 14×2 14×2
Die Cushion Stroke mm 70 70 70 70 80 80 100 100 100 100
Die Cushion Area mm 350×235×2sets 410×260×2sets 540×350×2sets 640×470×2sets 640×470×2sets
Features
  • Closed Straight-Side Frame
    The one-piece straight side frame provides a rigid structure that minimizes deformation during operation, supporting stable and accurate stamping results.
  • Optimized for Precision Progressive Dies
    Designed for continuous die processing, helping maintain consistent part quality across high-volume production.
  • Reduced Frame Deflection Compared to C-Frame Presses
    Eliminates the open throat limitation found in C-frame presses, which helps reduce die wear and lowers long-term maintenance costs.
  • High Machining Accuracy and Low Noise Operation
    Precision-machined components support stable motion and smoother operation, contributing to reduced noise during production.
  • User-Friendly Operation
    The layout and controls of the straight side press are designed for straightforward operation, making setup and daily use more efficient.
  • Six-Face Guided Ram (Slide)
    The ram is supported by a six-point guiding system that improves alignment and ensures stable movement throughout the stroke.
  • High Rigidity Structure with Minimal Clearance
    The overall frame and guiding system are designed to reduce total clearance, supporting consistent accuracy during stamping.
